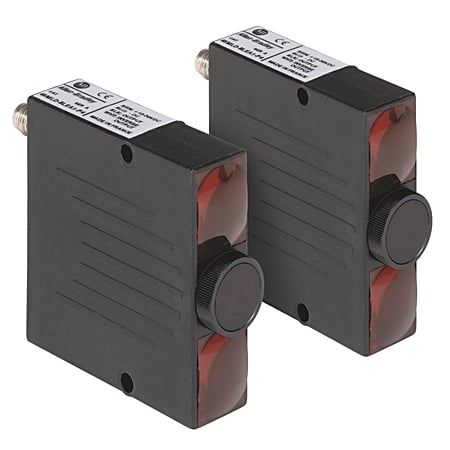

A-B 45MLD-8LEA1-P4 Laser Diffuse Se
A-B 45MLD-8LEA1-P4 Laser Diffuse Se
MPN 45MLD-8LEA1-P4
ASPN AB45MLD8LEA1P4
UPC 662073019565
Description
Features
- Protection typeReverse polarity, transient, overload, short circuit protection
- Lens materialPMMA
- Sensitivity adjustmentManually adjustable using the triangulation method
- Operating temperature0 to 50
- Leakage current12V supply: 0.92 mA @ 10 mA load, 9.3 mA @ 100 mA load 24V supply: 0.73 mA @ 10 mA load, 6.7 mA @ 100 mA load
Specifications
GTIN: 00662073019565
UNSPSC: 39121528
| Invoice Description - English | Laser Diffuse Sensor |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Output | NPN - PNP Selectable Output |
| Enclosure | Plastic |
| Voltage Rating | DC - LO or DO Selectable |
| Sensing Beam | Laser |
| Environmental Conditions | IP65,IP65 |
| BABA Compliant | No |
| Sensing Mode | Sharp Cut Off Diffuse |
| Height (Imperial) | 1.4016 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 5.3504 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 2.9488 |
| Width UOM (Imperial) | IN |
| Sensitivity Adjustment | Manually Adjustable |
