A-B 440L-P4KL1280YD GuardShield Typ
A-B 440L-P4KL1280YD GuardShield Typ
MPN 440L-P4KL1280YD
ASPN AB440LP4KL1280YD
UPC 612598955688
Description
Specifications
GTIN: 00612598955688
UNSPSC: 32151804
| Safety Data Sheet (SDS) Flag | N |
|---|---|
| Enclosure | IP65 |
| Width | 42 mm (1.65 in.) |
| Weld Shields | Optional available |
| Power Supply | 24V DC +/- 20% |
| Software | No |
| Operating Range | 0.3 … 16 m (0.98…52.5 ft) |
| Height | 52 mm (2.05 in.) |
| Light Source | Infrared 870 nm |
| Handheld Setting Console | No |
| Resolution | 30mm |
| Controller | Integrated |
| Protected Height | 1280mm (50.4 in) |
| Effective Aperture Angle | +/- 2.5 deg |
| Special Features | Type 4 |
| Response Time | 20 ms |
| Auxiliary-Output-Ratings | 0.5 A |
| BABA Compliant | No |
| Height (Imperial) | 5.2500 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 65.0000 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 7.7500 |
| Width UOM (Imperial) | IN |
| Safety Output Rating | 2 x PNP, 0.5 A |

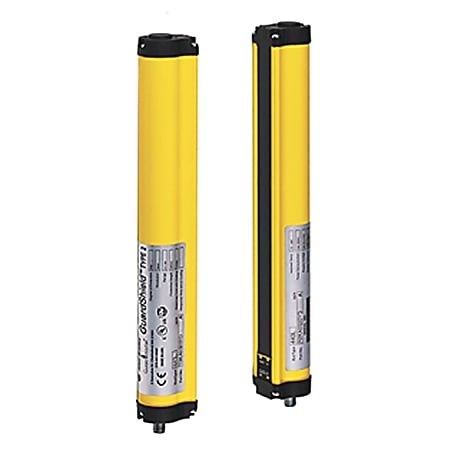

| Invoice Description - English | GuardShield Type 4 Light Curtain Pair |
