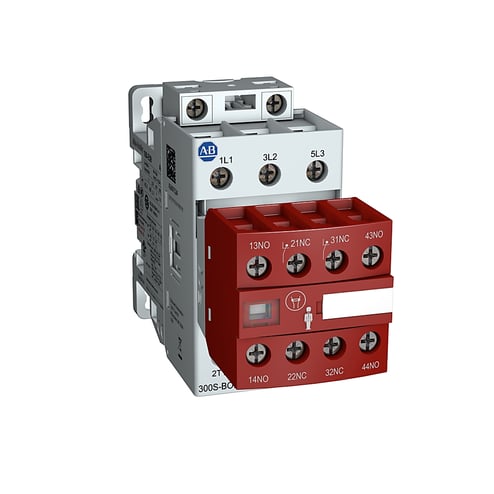

A-B 300S-BOD9322C NEMA Size 1 Safet
A-B 300S-BOD9322C NEMA Size 1 Safet
MPN 300S-BOD9322C
ASPN AB300SBOD9322C
UPC 191326937542
Description
Features
- Rated operational current and power (enclosed)5 Hp @ 250V DC, with 3-poles in series per UL/CSA
- Rated operational current and power (enclosed)7.5 Hp @ 200-208V, 3-phase per UL/CSA
- Rated operational current and power (enclosed)7.5 Hp @ 220-240V, 3-phase per UL/CSA
- Rated operational current and power1.5 Hp @ 115V AC, 500000 electrical operations, 1-phase per UL/CSA elevator duty
- Rated operational current and power15 Hp @ 460V AC, 500000 electrical operations, 3-phase per UL/CSA elevator duty
Specifications
GTIN: 00191326937542
UNSPSC: 39121529
| Safety Data Sheet (SDS) Flag | N |
|---|---|
| Maximum Load Current | 27 A Continuous |
| Number of Poles | 3 |
| NEMA Size | 1 |
| Enclosure Type | Open |
| Coil Voltage | 100-250V AC/DC |
| Contact Configuration | 0NO 0NC Low Power: 2NO 2NC |
| Contact Rating | 27 A Continuous |
| Bulletin | 300S |
| BABA Compliant | No |
| Height (Imperial) | 1.9000 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 5.6000 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 4.7000 |
| Width UOM (Imperial) | IN |
| Invoice Description - English | NEMA Size 1 Safety Contactor |
