A-B 25B-D010N114 PowerFlex 525 4kW

Disclaimer: Product images may be representative images and not necessarily show the actual item displayed. Please check product details to ensure the correct item is ordered.

Description

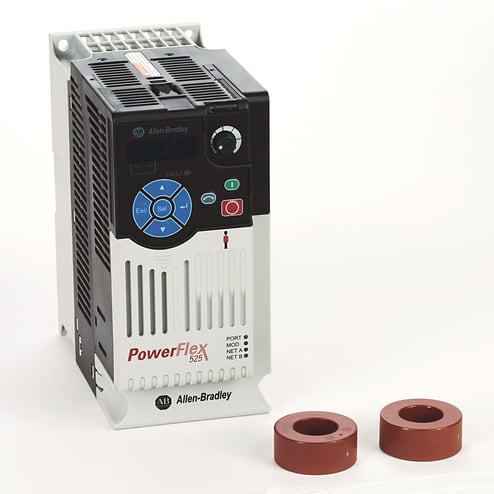

A-B 25B-D010N114 PowerFlex 525 4kW

AC Drive,4 kW (5 HP),480V AC Input,3 PH,50 60 Hz,10.5 A Output,IP20,UL NEMA Type Open,Panel Mounting,With Brake IGBT,With IntegralEMC Filter,V Per Hz Sensorless Vector Closed Loop Vector Perm Magnet Motor Control,Safe Torque Off PID SIL2 Cat 3,Safe Torqu

Specifications

GTIN: 00884951886032

UNSPSC: 39122001

Safety Data Sheet (SDS) Flag
N
Connection
Fixed Terminal Block
Power Factor
0.98
Brake-IGBT
Included
BABA Compliant
No
Height UOM (Imperial)
IN
Length (Imperial)
9.0551
Length UOM (Imperial)
IN
Width UOM (Imperial)
IN
Input Voltage Rating
480V AC
EXTENDED_TEMPERATURE
NO
CONFORMAL_COATING_OR_POTTING
YES
Frequency Rating
50-60
Frame Size
Frame B
Width (Imperial)
5.3150
Height (Imperial)
8.8583
User Interface
Integral Keypad &Potentiometer
Power Rating
4 kW (5 Hp)
Output Current Rating
10.5 A
Special Features
Internal CE Compliant Filter
Invoice Description - English
PowerFlex 525 4kW (5Hp) AC Drive
