A-B 25B-A011N104 PowerFlex 525 2.2k


Description

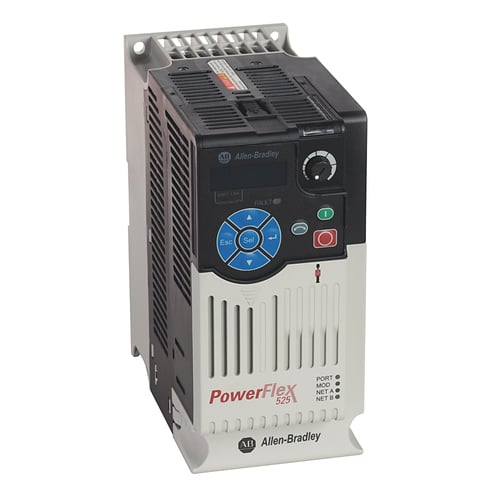

A-B 25B-A011N104 PowerFlex 525 2.2k

AC Drive,2.2 kW (3 HP),240V AC Input,1 PH,50 60 Hz,11 A Output,IP20,UL NEMA Type Open,Panel Mounting,With Brake IGBT, V PerHz Sensorless Vector Closed Loop Vector Perm Magnet Motor Control,Safe Torque Off PID SIL2 Cat 3,Safe Torque,Off PID,SIL2 Cat 3, Fr

Specifications

GTIN: 00884951885639

UNSPSC: 39122001

Invoice Description - English
PowerFlex 525 2.2kW (3Hp) AC Drive
Safety Data Sheet (SDS) Flag
N
Frame Size
Frame B
Frequency Rating
50-60
User Interface
Integral Keypad &Potentiometer
Connection
Fixed Terminal Block
Power Rating
2.2 kW (3 Hp)
Power Factor
0.98
Brake-IGBT
Included
BABA Compliant
No
Height (Imperial)
5.3902
Height UOM (Imperial)
IN
Length (Imperial)
9.3299
Length UOM (Imperial)
IN
Width (Imperial)
9.0598
Width UOM (Imperial)
IN
Output Current Rating
11 A
Input Voltage Rating
240V AC
EXTENDED_TEMPERATURE
NO
CONFORMAL_COATING_OR_POTTING
YES
