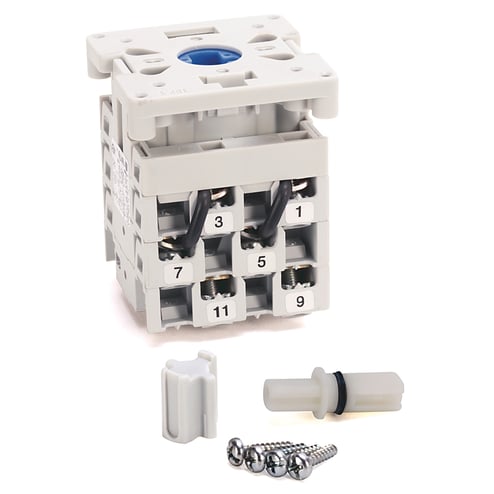

A-B 194L-E25-3502 25 A 194L Load Sw
A-B 194L-E25-3502 25 A 194L Load Sw
MPN 194L-E25-3502
ASPN AB194LE253502
UPC 662072563953
Description
Features
- Rated making/breaking capacity (= 1.5 x Ie)4 contacts in series: 27 A @ 201.6V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
- Rated making/breaking capacity (= 1.5 x Ie)4 contacts in series: 21 A @ 252V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
- Rated making/breaking capacity (= 1.5 x Ie)4 contacts in series: 7.5 A @ 462V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
- Rated making/breaking capacity (= 1.5 x Ie)5 contacts in series: 33 A @ 126V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
- Rated making/breaking capacity (= 1.5 x Ie)5 contacts in series: 27 A @ 252V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
Specifications
GTIN: 00662072563953
UNSPSC: 32151801
| Safety Data Sheet (SDS) Flag | N |
|---|---|
| Size | 25 A |
| Contact Configuration | Changeover 1-0-2 60° |
| BABA Compliant | No |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 3.5429 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 2.3618 |
| Width UOM (Imperial) | IN |
| Height (Imperial) | 2.9532 |
| Special Features | Changeover 1-0-2 60° |
| Number of Poles | 2 poles |
| Invoice Description - English | 25 A 194L Load Switch |
