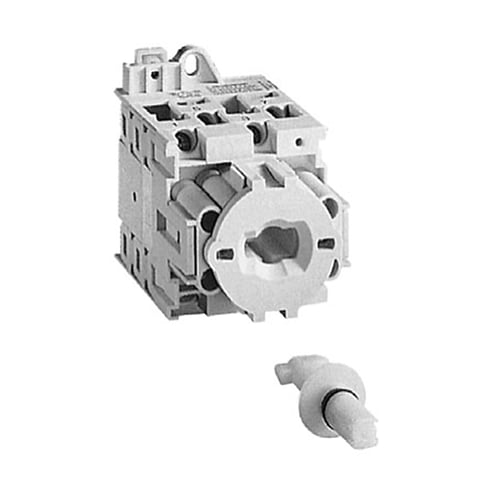

A-B 194L-A16-1756 16 A 194L Load Sw
A-B 194L-A16-1756 16 A 194L Load Sw
MPN 194L-A16-1756
ASPN AB194LA161756
UPC 662072561102
Description
Features
- Rated power (Pe)2 contacts in series: 0.25 kW @ 24V (DC-23A, DC-3, DC-5 for inductive loads, T =1 ms)
- Rated power (Pe)4 contacts in series: 0.50 kW @ 60V (DC-23A, DC-3, DC-5 for inductive loads, T =1 ms)
- Rated power (Pe)2 contacts in series: 0.30 kW @ 48V (DC-23A, DC-3, DC-5 for inductive loads, T =1 ms)
- Rated power (Pe)3 contacts in series: 0.37 kW @ 48V (DC-23A, DC-3, DC-5 for inductive loads, T =1 ms)
- Rated power (Pe)2 contacts in series: 0.30 kW @ 60V (DC-23A, DC-3, DC-5 for inductive loads, T =1 ms)
Specifications
GTIN: 00662072561102
UNSPSC: 32151801
| Invoice Description - English | 16 A 194L Load Switch |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Number of Poles | 6 Poles |
| Size | 16 A |
| Special Features | OFF-ON 90° |
| Actuator | Select actuator separately |
| Contact Configuration | OFF-ON 90° |
| BABA Compliant | No |
| Height (Imperial) | 1.9689 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 3.1500 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 2.9532 |
| Width UOM (Imperial) | IN |
