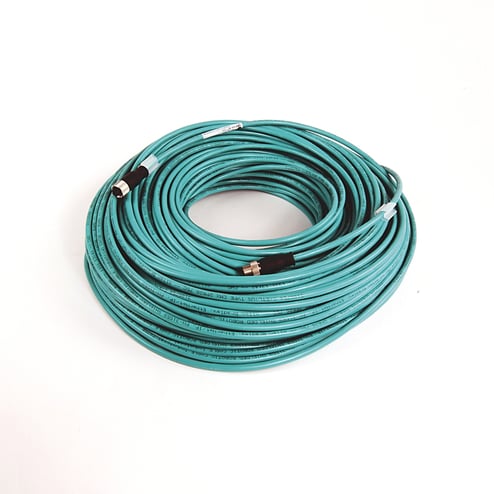

A-B 1585D-M4UBDF-7M7 Micro D-Code,


Description

A-B 1585D-M4UBDF-7M7 Micro D-Code,

Ethernet Media,Micro D Code, QD Style,Standard,Straight Male,4 conductors (2 pair),Teal Shld 26AWG Flex LSZH PUR,100BASE TX, 100 Mbit/s,Micro Style QD, (D code QD),Straight Female,standard,Build To Order Cable Lengths,7.70 EA ,Standard

Features

  • MountingFront-mount
  • MaterialCoupling nut: Nickel-plated brass; housing: polyurethane (PUR); contact: Gold-plated brass
  • Voltage300 V
  • Cable typeTeal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG
  • Operating temperature'-40 to 75 °C

Specifications

GTIN: 00889508590714

UNSPSC: 26121609

Invoice Description - English
Micro D-Code, QD Style Ethernet Media
Safety Data Sheet (SDS) Flag
N
Cable Type
Teal 26AWG Flex LSZH PUR
Number of Conductors
4 conductors (2-pair)
Special Features
standard, Standard
Data Transfer Rate
100BASE-TX, 100 Mbit/s
Shield
Foil and Braided Shield
BABA Compliant
No
Height (Imperial)
1.8000
Height UOM (Imperial)
IN
Length (Imperial)
9.4500
Length UOM (Imperial)
IN
Width (Imperial)
9.7500
Width UOM (Imperial)
IN
First End Connector
Micro D-Code, QD Style
First End Description
Straight Male
Second End Connector
Micro Style QD, (D-code QD)
Second End Description
Straight Female
