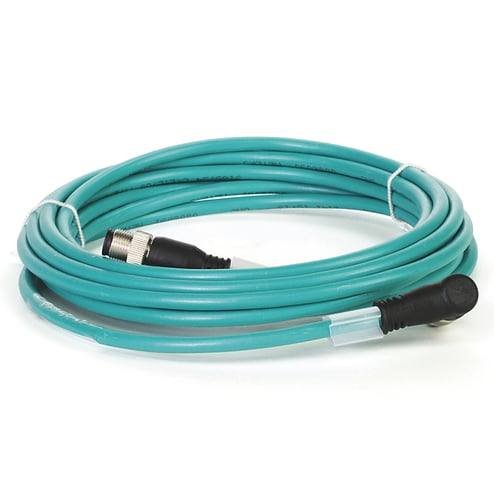

A-B 1585D-M4UBDE-5 Micro D-Code, QD
A-B 1585D-M4UBDE-5 Micro D-Code, QD
MPN 1585D-M4UBDE-5
ASPN AB1585DM4UBDE5
UPC 885630038308
Description
Features
- MaterialCoupling nut: Nickel-plated brass; housing: polyurethane (PUR); contact: Gold-plated brass
- Voltage300 V
- MountingFront-mount
- Cable typeTeal, foil and braided shield, halogen-free PUR, high-flex, 26 AWG
- Secondary end connectorMicro style QD, (D-code QD)
Specifications
GTIN: 00885630038308
UNSPSC: 26121609
| Invoice Description - English | Micro D-Code, QD Style Ethernet Media |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Number of Pins | 4 Conductors |
| Cable Type | Teal 26AWG Flex LSZH PUR |
| Number of Conductors | 4 conductors (2-pair) |
| Special Features | standard, Standard |
| Data Transfer Rate | 100BASE-TX, 100 Mbit/s |
| Shield | Foil and Braided Shield |
| Armour | Teal Halogen Free PUR - Foil and Braided Shielding |
| BABA Compliant | No |
| Height (Imperial) | 1.5500 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 10.3000 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 9.2500 |
| Width UOM (Imperial) | IN |
| First End Connector | Micro D-Code, QD Style |
| First End Description | Straight Male |
| Second End Connector | Micro Style QD, (D-code QD) |
| Second End Description | Right Angle Male |
