A-B 1494G-DF3N-412 NEMA 1494G Enclo


Description

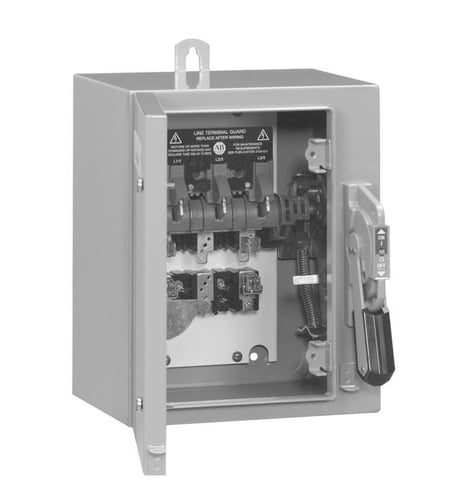

A-B 1494G-DF3N-412 NEMA 1494G Enclo

1494G Enclosed Disconnect,Non Fusible,NEMA 3R/4/12 Painted,3 Pole Three Phase,Non Fusible,Optional Selection,NEMA 12/3R/4 Painted Handle,Non Fusible,100 A,3 Phase,20 x 10 x 9 in.,100A,No Fuse Clips

Features

  • Auxiliary contact electrical ratingsAC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V, 5 mA minimum per IEC
  • Electrical interlock ratingsStandard contact 1 N.O. and 1 N.C.: 20 A: 480V AC, 0.25 A: 250V DC per NEMA/EEMAC
  • Electrical interlock ratingsStandard contact 2 N.O. and 2 N.C.: 20 A: 480V AC, 0.25 A: 250V DC per NEMA/EEMAC
  • Ambient temperatureEnclosed: -20...40 °C (-4...104 °F)
  • Ambient temperatureStorage: -40...65 °C (-40...149 °F)

Specifications

GTIN: 00781180172182

UNSPSC: 39122233

Invoice Description - English
NEMA 1494G Enclosed Disconnect
Safety Data Sheet (SDS) Flag
N
Number of Poles
3 Pole - Three Phase
Disconnect Type
Non-Fusible
Special Features
Optional Selection
Amperage Rating
100 A
Bulletin-Number
1494G
BABA Compliant
No
Height (Imperial)
11.5000
Height UOM (Imperial)
IN
Length (Imperial)
35.9902
Length UOM (Imperial)
IN
Width (Imperial)
13.3500
Width UOM (Imperial)
IN
Fuse Clips
Non-Fusible
Factory Installed Modification
Optional Selection
Pole Configuration
3 Pole - Three Phase
