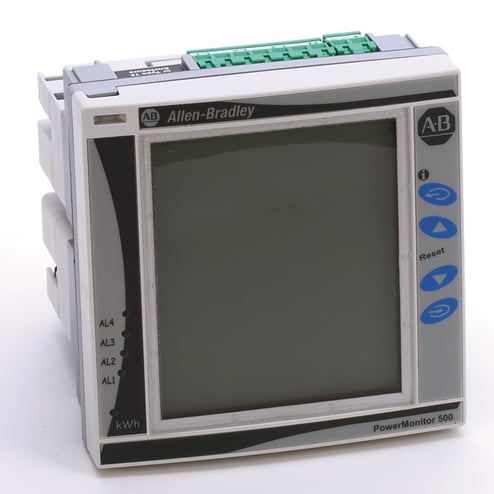

A-B 1420-V1P-485 Powermonitor 500 S
A-B 1420-V1P-485 Powermonitor 500 S
MPN 1420-V1P-485
ASPN AB1420V1P485
UPC 885630236568
Description
Features
- Optional serial RS-232/RS-485 communication supporting Modbus RTUYes
- An optional pair of digital (relay) outputsYes
- AccuracyVoltage, nominal: 120V AC LN; 208V AC LL @ 25 °C ±5 °C, R.H. = 60%, 48...62 Hz
- Front protection degreeIP65, NEMA 4X, NEMA 12
- configurable virtual alarmsUp to four configurable virtual alarms
Specifications
GTIN: 00885630236568
UNSPSC: 39121106
| Invoice Description - English | Powermonitor 500 Serial Power Meter |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Frequency Rating | 45-65Hz |
| Voltage Rating | 600VLL AC |
| Accuracy | 1.00% |
| Amperage Rating | 5A Direct Connection |
| Application | Power Management |
| Alarm | Yes |
| Communications | RS-485 |
| BABA Compliant | No |
| Height (Imperial) | 4.0598 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 6.5402 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 4.1299 |
| Width UOM (Imperial) | IN |
