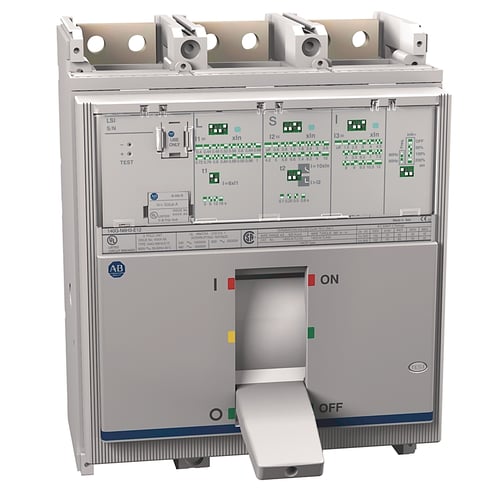

A-B 140G-N0H3-E12-AB 140G 1200A N F
A-B 140G-N0H3-E12-AB 140G 1200A N F
MPN 140G-N0H3-E12-AB
ASPN AB140GN0H3E12AB
UPC 887172681141
Description
Features
- Vibration2...13.2 Hz ±1 mm; 13.2...100 Hz ±0.7 G
- Voltage for reverse-fed circuit breaker, max600V AC per UL/CSA
- Voltage for reverse-fed circuit breaker, max690V AC per IEC
- Operational voltage (Ue)100% of voltage rating @ 2000 meter (6560 ft) altitude
- Operational voltage (Ue)90% of voltage rating @ 3000 meter (9840 ft) altitude
Specifications
GTIN: 00887172681141
UNSPSC: 39121616
| Invoice Description - English | 140G 1200A N Frame Molded Case Ckt-Bkr |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Trip Type | ElecLSI - Lg&ShTm,Hgh Inst |
| Interrupt Rating | 100 kA at 480V |
| Number of Poles | 3 Poles |
| Current Rating | 1200A |
| Trip Range | 80 Percent MCCB |
| Frame | 1200A N Frame |
| Interrupt-Rating--240VAC | 100 kA at 480V |
| BABA Compliant | No |
| Height (Imperial) | 13.9370 |
| Height UOM (Imperial) | IN |
| Length (Imperial) | 14.6457 |
| Length UOM (Imperial) | IN |
| Width (Imperial) | 11.2598 |
| Width UOM (Imperial) | IN |
