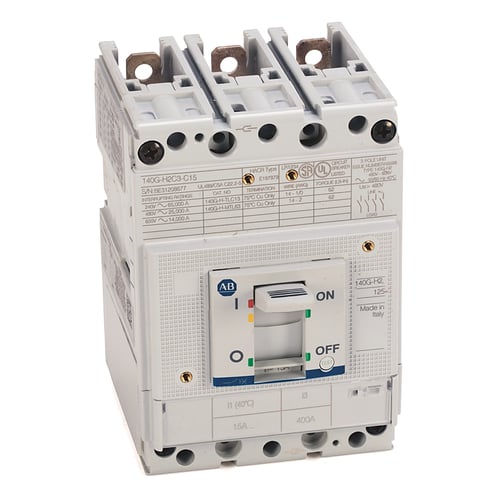

A-B 140G-H2C3-C60-MB 140G 125A H Fr
A-B 140G-H2C3-C60-MB 140G 125A H Fr
MPN 140G-H2C3-C60-MB
ASPN AB140GH2C3C60MB
UPC 887172538124
Description
Features
- Interrupting rating14 kA @ 600V AC, 50/60 Hz per NEMA, UL, CSA
- Rated ultimate short-circuit breaking capacity (Icu)IEC 60947-2: 65 kA @ 220...230V AC, 50/60 Hz
- Interrupting rating25 kA @ 480V AC, 50/60 Hz per NEMA, UL, CSA
- Rated ultimate short-circuit breaking capacity (Icu)IEC 60947-2: 20 kA @ 525V AC, 50/60 Hz
- Rated ultimate short-circuit breaking capacity (Icu)IEC 60947-2: 10 kA @ 690V AC, 50/60 Hz
Specifications
GTIN: 00887172538124
UNSPSC: 39121616
| Invoice Description - English | 140G 125A H Frame Molded Case Ckt-Bkr |
|---|---|
| Safety Data Sheet (SDS) Flag | N |
| Trip Type | T/M - Fixed Thrm / Fixed Mgntc |
| Interrupt Rating | 25 kA at 480V |
| Current Rating | 60A |
| Trip Range | 80 Percent MCCB |
| Frame | 125A H Frame |
| Interrupt-Rating--240VAC | 25 kA at 480V |
| BABA Compliant | No |
