Description

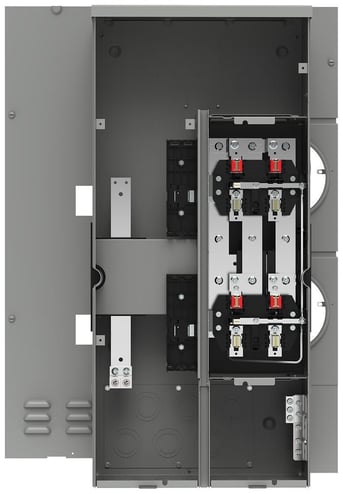

Siemens PowerMod™ Meter Stack, 3/4-Wire Type WMN ConEd, 240 VAC, 1200 A Bus, 225 A Socket, 2 Meter Sockets, 1/3 ph, Ring Socket Cover Style, 5 Socket Jaws, QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH Breaker, NEMA 1R Enclosure, Quick Roll Mounting, 35.31 in H x 16.09 in W x 8.09 in D Dimensions
Features
- Exclusive knockout plate offers flexibility when pulling wires to the stack
- Moveable neutrals and grounds to save wire
- QuickSystem™ features
- 3-phase 4-wire solid neutral incoming and 1-phase 3-wire solid neutral outgoing
Specifications
GTIN: 00887621270742
UNSPSC: 39121102
Country of Origin: United States of America (the)
| Type | 3/4-Wire Type WMN ConEd |
|---|---|
| Socket Jaws | 5 |
| Voltage Rating | 240 V AC |
| Weight | 21.6 lbs |
| Breaker Type | QP/MP-T/QPH/HQP/MP-HT/MP-MT/QS/QSH/QSHH/HQS/HQSH |
| Number of Meter Sockets | 2 |
| Enclosure Type | NEMA 1R |
| Dimensions | 35.31 in H x 16.09 in W x 8.09 in D |
| Socket Amps | 225 A |
| Mounting Type | Quick Roll |
| Bus Amps | 1200 A |
| Phase | 1/3 |
| Socket Cover Style | Ring |
| BABA Compliant | No |
| Sold as | EACH |
