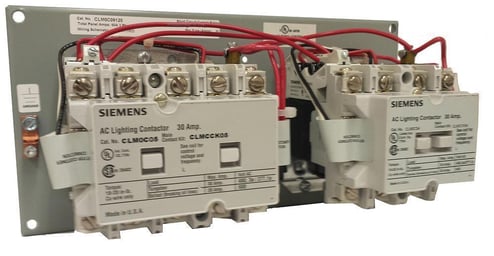

Siemens CLM0C08480 Class CLM Magnetically/Mechanically Held Non-Combination Lighting Contactor, 480 VAC Coil, 30 A, 8NO Contact, 8 Poles
Siemens CLM0C08480 Class CLM Magnetically/Mechanically Held Non-Combination Lighting Contactor, 480 VAC Coil, 30 A, 8NO Contact, 8 Poles
MPN CLM0C08480
ASPN SIECLM0C08480
UPC 783087771406
Description
Features
- Simplicity and compact lightweight design makes Class LE lighting contactors an attractive solution to your budgeting challenges
- Used in applications where it is not critical that contacts remain closed if control power is lost
- Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
- 3 and 4-pole (up to 12-pole for 30 and 60 A contactors)
- Most contactors have built-in auxiliary contacts for convenient 3-wire control
- Compact design allows for smaller panels and more wiring room
- Finger and back-of-hand safe terminals
- Full line of factory and field modifications
- Energy efficient, quiet operation
Specifications
GTIN: 00783087771406
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Type | Class CLM Magnetically/Mechanically Held Non-Combination |
|---|---|
| Terminal Type | Screw |
| Maximum Load Current | 30 A |
| Number of Poles | 8 |
| Wattage | 820 VA Pickup, 80 VA Holding |
| Frequency Rating | 60 Hz |
| Width | 24 in |
| Enclosure Type | Open |
| Dimensions | 5.87 in H x 8 in W x 4.86 in D |
| Coil Voltage | 480 V AC |
| Mounting Type | Surface |
| Contact Configuration | 8NO |
| Contact Rating | 30 A at 277/347/480/600 V AC |
| Operating Cycles | 10000000 |
| BABA Compliant | No |
| Sold as | EACH |
