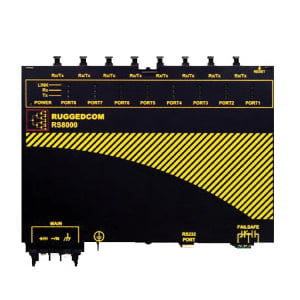

Siemens RUGGEDCOM RuggedSwitch A6X30091156 RS8000T 8-Port Fully Managed Ethernet Switch, 10100BaseTX, 2-100BaseFX, Multi-Mode 1300 nm 2 km Interface, MTRJ Port, 1.6 Gbps Switching, 1536 B Memory, eRSTPIGMPSNMPSNTPSFTP Protocol

Siemens RUGGEDCOM RuggedSwitch Ethernet Switch, 8-Port Fully Managed, Series: RS8000T, 10/100BaseTX, 2-100BaseFX, Multi-Mode 1300 nm 2 km Interface, MTRJ Port, 1.6 Gbps Switching Capacity, Memory: 1536 B, Protocol: eRSTP/IGMP/SNMP/SNTP/SFTP, Network: VLAN/Ethernet, Terminal Block Connectivity, Cat 5 UTP/Copper/Fiber Optic Cable, SFF Connector, 85 to 264 VAC/88 to 300 VDC Supply, IP30/IP40, DIN Rail/Panel Mount, 274.3 mm Length, 63.8 mm Width, -40 to 185 deg F, Environmental Conditions: -40 to 185 deg F Storage, 5 to 95% Non-Condensing Ambient Relative Humidity

The RUGGEDCOM® RS8000T provides substation hardened, fully managed, Ethernet switches specifically designed to operate reliably in electrically and environmentally harsh environments. The RUGGEDCOM® RS8000T model provides IEEE 1613 class 2 error-free communications performance under EMI stress. An operating temperature range of -40 to 85 deg C (-40 to 185 deg F) allows the RUGGEDCOM® RS8000T to be placed in almost any location. The RUGGEDCOM® RS8000T provides a wide range of power supply options suitable for multiple industries and for worldwide operability. Options include 24 VDC, 48 VDC and HI (88 to 300 VDC/85 to 264 VAC). The RUGGEDCOM® RS8000T offers advanced layer 2 and 3 networking features and network management via the Rugged Operating System (ROS®). A unique feature of ROS is the performance of its IEEE 802.1w Rapid Spanning Tree Protocol (RSTP™) used for implementing fault tolerant ring and mesh network architectures. The protocol has been optimized to support ring sizes of up to 160 switches and fault recovery times in the order of less than 5 ms per switch. The RUGGEDCOM® RS8000T's superior ruggedized design coupled with the Rugged Operating System (ROS®) provides improved system reliability and advanced networking features making it ideally suited for creating Ethernet networks for mission critical, real time and control applications.
