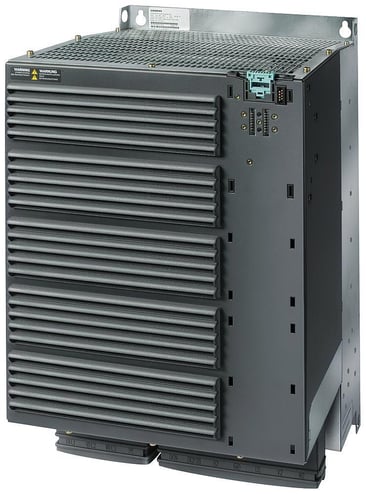

Siemens 6SL32240BE355UA0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 151168 A Input, 220 A Output
Siemens 6SL32240BE355UA0 SINAMICS G120 3-Phase Power Module With Built-In Braking Chopper, 380 to 480 VAC Input, 400 VAC Output, 151168 A Input, 220 A Output
MPN 6SL32240BE355UA0
ASPN SIE6SL32240BE355UA0
UPC 662643434576
Description
Features
- 151 A input rated current with integrated line reactor, 168 A input rated current without integrated line reactor
- Without integrated line filter
- 145 A low overload, 110 a high overload, 220 A maximum output current
- 0 to 40 deg C low overload, -10 to 50 deg C high overload ambient
Specifications
GTIN: 00662643434576
UNSPSC: 39121007
Country of Origin: Germany
| Type | 3-Phase |
|---|---|
| Output Voltage | 400 VAC |
| Weight | 8.6 lbs |
| Input Voltage | 380 to 480 VAC |
| Dimensions | 24.96 in H x 13.78 in W x 12.44 in D |
| Series | SINAMICS G120 |
| Power Dissipation | 1.93 kW |
| BABA Compliant | No |
| Temperature Rating | -10 to 50 deg C |
| Output Current | 220 A |
| Input Current | 151/168 A |
| Specifications | 60 dB Sound Pressure, 97% Efficiency, IP20/Open Enclosure, 47 to 63 Hz |
| Sold as | EACH |
