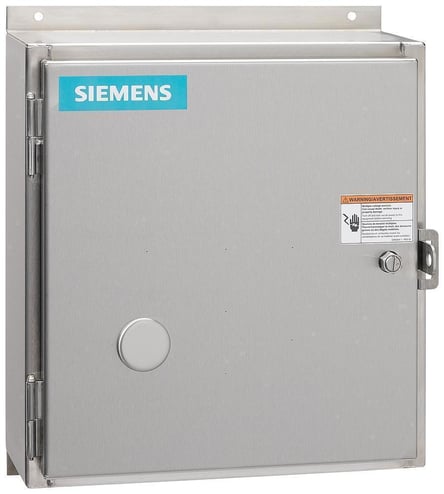

Siemens 40FP82WH 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 380 to 440 VAC, 440 to 480 VAC Coil, 45 A, 3NO Contact, 3 Poles
Siemens 40FP82WH 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 380 to 440 VAC, 440 to 480 VAC Coil, 45 A, 3NO Contact, 3 Poles
MPN 40FP82WH
ASPN SIE40FP82WH
UPC 783087690073
Description
Features
- Gravity dropout contacts
- 45 deg wedge action contacts
- Self-rising pressure type control terminals
- Encapsulated coil
- 380 to 440 VAC at 50 Hz, 440 to 480 VAC at 60 Hz coil voltage
Specifications
GTIN: 00783087690073
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Type | 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Terminal Type | Box Lug/Screw |
| Maximum Load Current | 45 A |
| Number of Poles | 3 |
| Wattage | 218 VA Pickup, 25 VA Holding |
| Frequency Rating | 50/60 Hz |
| Coil Power Rating | 8.6 W |
| Size | S2 |
| Weight | 34 lbs |
| Width | 6.8 in |
| Enclosure Type | NEMA 4/4X |
| Dimensions | 16 in H x 13 in W x 6 in D |
| Coil Voltage | 380 to 440 V AC, 440 to 480 V AC |
| Mounting Type | Surface |
| Material | 304 Stainless Steel |
| Contact Configuration | 3NO |
| Contact Rating | 10 A at 600 V AC, 5 A at 600 V DC |
| Operating Cycles | 10000000 |
| Number of Auxiliary Contacts | 1NO |
| BABA Compliant | No |
| Sold as | EACH |
