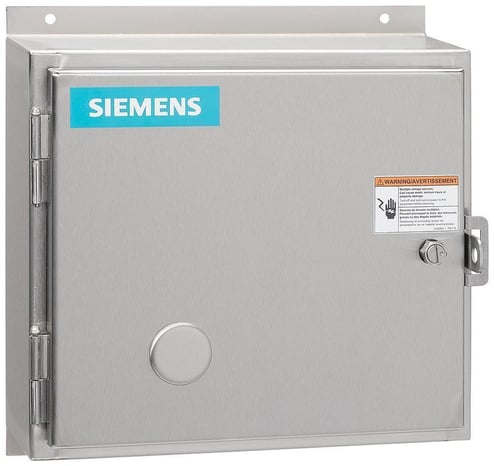

Siemens 40DP82WH 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 380 to 440 VAC, 440 to 480 VAC Coil, 27 A, 3NO Contact, 3 Poles
Siemens 40DP82WH 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination NEMA Contactor, 380 to 440 VAC, 440 to 480 VAC Coil, 27 A, 3NO Contact, 3 Poles
MPN 40DP82WH
ASPN SIE40DP82WH
UPC 783087689534
Description
Features
- 380 to 440 VAC at 50 Hz, 440 to 480 VAC at 60 Hz coil voltage
Specifications
GTIN: 00783087689534
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Type | 3-Phase 3-Wire Class 40 Across the Line Full Voltage Heavy Duty Magnetic Non-Reversing Non-Combination |
|---|---|
| Operating Temperature | -4 to 104 deg F |
| Terminal Type | Screw |
| Maximum Load Current | 27 A |
| Number of Poles | 3 |
| Wattage | 218 VA Pickup, 25 VA Holding |
| Frequency Rating | 50/60 Hz |
| Size | S1 |
| Width | 20 in |
| Enclosure Type | NEMA 4/4X |
| Dimensions | 13 in H x 13 in W x 5 in D |
| Coil Voltage | 380 to 440 V AC, 440 to 480 V AC |
| Mounting Type | Surface |
| Material | 304 Stainless Steel |
| Contact Configuration | 3NO |
| Contact Rating | 10 A at 600 V AC, 5 A at 600 V DC |
| Operating Cycles | 10000000 |
| Number of Auxiliary Contacts | 1NO |
| BABA Compliant | No |
| Sold as | EACH |
