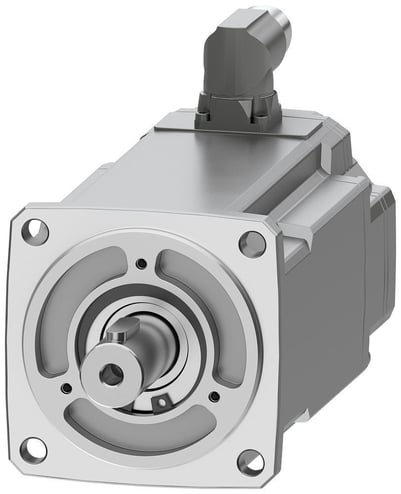

Siemens SIMOTICS 1FK21046AF001MA0 S-1FK2 3-Phase High Dynamic Natural Cooling AC Servo Motor, Application Type: Synchronous Permanent Magnet AC Motors, 1.34 hp, 380 to 480 VAC, 3 A, 04 Frame, 3000 rpm Speed, IM B5 Mount
Siemens SIMOTICS 1FK21046AF001MA0 S-1FK2 3-Phase High Dynamic Natural Cooling AC Servo Motor, Application Type: Synchronous Permanent Magnet AC Motors, 1.34 hp, 380 to 480 VAC, 3 A, 04 Frame, 3000 rpm Speed, IM B5 Mount
MPN 1FK21046AF001MA0
ASPN SIE1FK21046AF001MA0
UPC 804766805295
Description
Features
- With AM22DQC absolute encoder, feather keyed shaft extension
Specifications
GTIN: 00804766805295
UNSPSC: 26101109
Country of Origin: Germany
| Application Type | Synchronous Permanent Magnet AC Motors |
|---|---|
| Torque Rating | 3.2 N-m |
| Voltage Rating | 380 to 480 V AC |
| Weight | 0.3 lbs |
| Width | 18 in |
| Shaft Size | 19 mm Dia x 40 mm H |
| Speed | 3000 rpm |
| Insulation Class | Class B |
| Enclosure Type | IP64 |
| Mounting Type | IM B5 |
| Bearing Type | Roller |
| Amperage Rating | 3 A |
| Temperature Rating | 5 to 104 deg F |
| Horsepower | 1.34 hp |
| Frame | 04 |
| BABA Compliant | No |
| Series | S-1FK2 |
| Type | 3-Phase High Dynamic Natural Cooling |
| Sold as | EACH |
