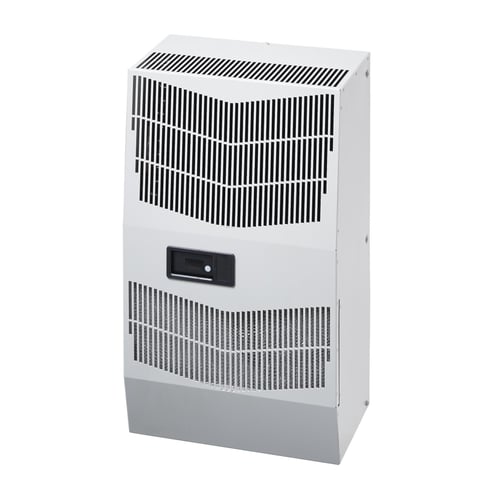

nVent HOFFMAN Spectracool G280416G101 MCLG Indoor/Outdoor Enclosure Air Conditioner, 115 VAC, 10.1/10.4 A, 50/60 Hz, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, 4000/6000 Btu/hr
nVent HOFFMAN Spectracool G280416G101 MCLG Indoor/Outdoor Enclosure Air Conditioner, 115 VAC, 10.1/10.4 A, 50/60 Hz, NEMA 1/2/3/3R/4/12/13/IP65/IP66 Enclosure, 4000/6000 Btu/hr
MPN G280416G101
ASPN HOFFG280416G101
UPC 783510210564
Description
Features
- Attractive industrial design with minimal use of visible fasteners
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include, Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
Specifications
GTIN: 00783510210564
UNSPSC: 40101701
Country of Origin: United States of America (the)
| Type | Indoor/Outdoor |
|---|---|
| Control Type | Basic Mechanical Thermostat |
| Color | Light Gray |
| Frequency Rating | 50/60 Hz |
| Voltage Rating | 115 V AC |
| Enclosure Type | NEMA 3R/4/12/IP56 |
| Dimensions | 28.55 in H x 16.97 in W x 10.1 in D |
| Mounting Type | Flanged |
| Capacity Range | 4900 Btu/hr |
| Series | MCLG |
| Connection Type | Terminal |
| Material | Galvanized Sheet Metal |
| Amperage Rating | 10.1/10.4 A |
| Power Rating | 1172/1758 W |
| Temperature Rating | -40 to 131 deg F |
| BABA Compliant | Yes |
| Sold as | PIECE |
