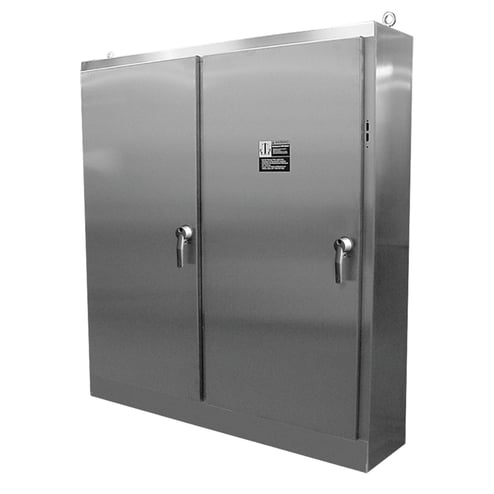

nVent HOFFMAN A90XM4018SSN4 A28S4 1-Door Disconnect Enclosure, 90.12 in L x 40-1/4 in W x 18.12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A90XM4018SSN4 A28S4 1-Door Disconnect Enclosure, 90.12 in L x 40-1/4 in W x 18.12 in D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
MPN A90XM4018SSN4
ASPN HOFFA90XM4018SSN4
UPC 783510111182
Description
Features
- Disconnect enclosure is designed to house electronic controls
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough collar excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Heavy-gauge continuous hinges
- Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors
- Panel supports
- Data pocket is high-impact thermoplastic
Specifications
GTIN: 00783510111182
UNSPSC: 39121324
Country of Origin: United States of America (the)
| Type | 1-Door |
|---|---|
| Lock | 3-Point Latch/Padlock Handle |
| Weight | 76 lbs |
| Width | 40-1/4 in |
| Depth | 18.12 in |
| NEMA Rating | NEMA 4X/IP66 |
| Length | 90.12 in |
| Cover Type | Continuous Hinged |
| Mounting Type | Freestanding |
| Series | A28S4 |
| Panel Size | 78 x 33-3/4 in |
| Material | 304 Stainless Steel |
| Volume | 214.3 CF |
| Finish | Brushed |
| BABA Compliant | Yes |
| Sold as | PIECE |
