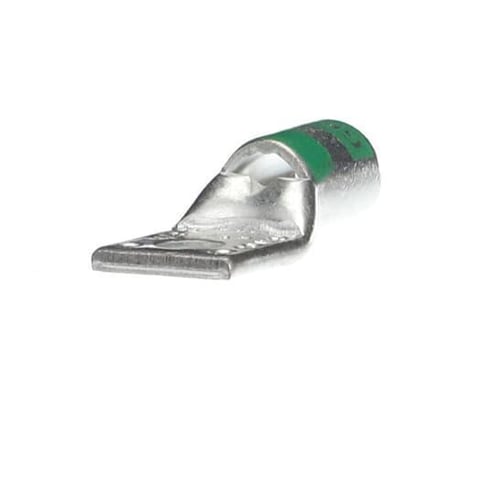

Color-Keyed® 54108 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 1 AWG Copper Conductor, Die Code: 37, 1/4 in Stud, Copper


Description

Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 1 AWG Conductor, Die Code: 37, 35 kV, 1/4 in Stud, Straight Tongue, 0.65 in L x 0.68 in W x 0.11 in THK Tongue, 1-1/2 in Overall Length, Standard Barrel, 0.47 in Dia Barrel, Specifications: Tin Plated, 0.281 in Mounting Hole, Copper, Green

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Features

  • Peep hole
  • High conductivity wrought copper construction
  • Tin plated finish

Specifications

GTIN: 00786210541082

UNSPSC: 39121405

Country of Origin: Mexico

Color
Green
Overall Length
1-1/2 in
Conductor Type
Copper
Voltage Rating
35 kV
Stud Size
1/4 in
Material
Copper
BABA Compliant
No
Mounting Hole Size
0.281 in
Die Code
37
Series
54100
Tongue Size
0.65 in L x 0.68 in W x 0.11 in THK
Conductor Size
1 AWG
Specifications
Tin Plated
Barrel Type
Standard
Tongue Type
Straight
Barrel Size
0.47 in Dia
Type
1-Hole Non-Insulated
Sold as
EACH
