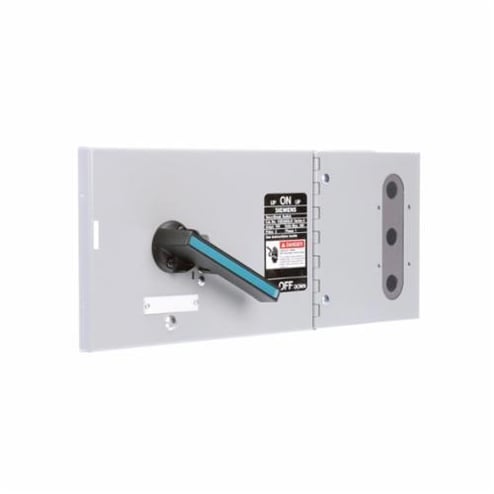

Siemens Vacu-Break V2E2203LR Type VB Fused Panelboard Disconnect Switch, 250 VDC, 100 A, 7.515 hp, DPST Contact, 2 Poles
Siemens Vacu-Break V2E2203LR Type VB Fused Panelboard Disconnect Switch, 250 VDC, 100 A, 7.515 hp, DPST Contact, 2 Poles
MPN V2E2203LR
ASPN SIEV2E2203LR
UPC 783643232518
Description
Features
- Hazardous switching arcs are safely confined and controlled in the vacu-break chamber
- All line connections are phased as per NEMA standards
- Pressure terminal connector
- Bullet nosed for positive location and seating of screw
- Quick-make quick-break assured by design of cam mechanism and powerful springs
- Easy mounting feet have captive bullet nosed screws added, which seat quickly and positively, reducing installation time
- Padlocking member provides locking of handle in the ON/OFF position
- High pressure spring reinforced copper fuse clips
- Voidable cover interlock
Specifications
GTIN: 00783643232518
UNSPSC: 39122205
Alternative Part Number: 7566103
Country of Origin: Mexico
| Terminal Type | Screw |
|---|---|
| Number of Poles | 2 |
| Frequency Rating | 60 Hz |
| Voltage Rating | 250 VDC |
| Enclosure Type | NEMA 1 |
| Short Circuit Current Rating | 200/10 kA |
| Dimensions | 7-1/2 in H x 12 in W x 6-3/4 in D |
| Insulation Type | Non-Insulated |
| Mounting Type | Inside Panelboard |
| Phase | 1 |
| Amperage Rating | 100 A |
| BABA Compliant | No |
| Horsepower | 7.5/15 hp |
| Temperature Rating | -20 to 120 deg F |
| Contact Form | DPST |
| Actuator Type | Padlocking Handle |
| Type | Type VB Fused |
| Sold as | EACH |
