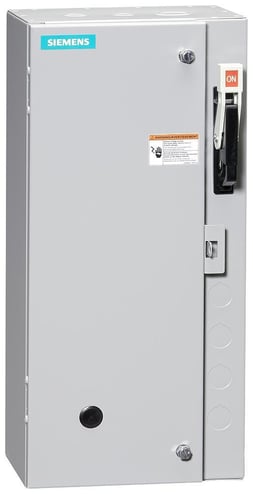

Siemens US2:LEDD1D003240C C Series Class LE Electrically Held General Purpose Lighting Contactor, 240 VAC V Coil, 60 A
Siemens US2:LEDD1D003240C C Series Class LE Electrically Held General Purpose Lighting Contactor, 240 VAC V Coil, 60 A
MPN US2:LEDD1D003240C
ASPN SIEUS2:LEDD1D003240C
UPC 804766895364
Description
Features
- Simplicity and compact lightweight design makes Class LE lighting contactors an attractive solution to your budgeting challenges
- Used in applications where it is not critical that contacts remain closed if control power is lost
- Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
- Most contactors have built-in auxiliary contacts for convenient 3-wire control
- Compact design allows for smaller panels and more wiring room
- Finger and back of hand safe terminals
- Full line of factory and field modifications
- Compact design, finger-safe control terminals
Specifications
GTIN: 00804766895364
UNSPSC: 39121529
Alternative Part Number: 15549741
Country of Origin: United States of America (the)
| Number of Poles | 3 |
|---|---|
| Mounting Type | Surface |
| BABA Compliant | No |
| Number of Auxiliary Contacts | 14 |
| Contact Type | Combination |
| Coil Voltage | 240 VAC |
| Enclosure Type | NEMA 1 |
| Weight | 78.4 lbs |
| Type | Class LE Electrically Held General Purpose |
| Operating Temperature | 32 to 104 deg F |
| Terminal Type | Box Lug/Screw |
| Frequency Rating | 50/60 Hz |
| Contact Rating | 60 A at 277/347/480/600 VAC |
| Operating Cycles | 10000000 cycles |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Series | C Series |
| Connection Type | Screw |
| Contact Configuration | 1NC-1NO |
| Maximum Load Current | 60 A |
| Coil Power Rating | 188 VA Pickup, 16.5 VA Holding |
| Sold as | EACH |
