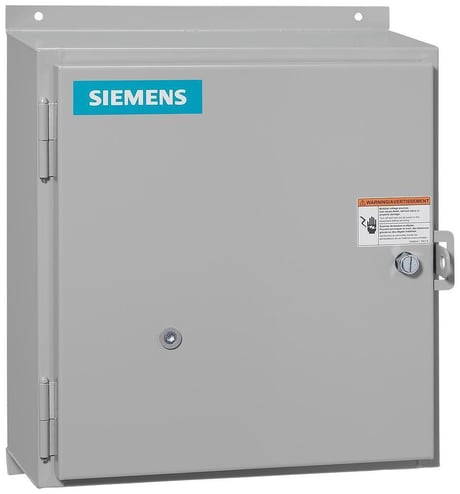

Siemens US2:43HP32FH Class 43 3-Phase Heavy Duty Full Voltage Reversing Magnetic Contactor, 380 to 440/440 to 480 VAC V Coil, 90 A, 2NO-2NC Contact, 3 Poles
Siemens US2:43HP32FH Class 43 3-Phase Heavy Duty Full Voltage Reversing Magnetic Contactor, 380 to 440/440 to 480 VAC V Coil, 90 A, 2NO-2NC Contact, 3 Poles
MPN US2:43HP32FH
ASPN SIEUS2:43HP32FH
UPC 887621382926
Description
Features
- Rugged industrial design
- Easy coil access
- Straight through wiring
- Gravity dropout contacts
- Large silver cadmium contacts
- Dual voltage, dual frequency coils
- 45 deg wedge action contacts
- Self-rising pressure type control terminals
- Encapsulated coil
- Standard width enclosure
- Water/dust-tight, corrosion resistant fiberglass enclosure
- 380 to 440 V at 50 Hz/440 to 480 V at 60 Hz coil voltage
Specifications
GTIN: 00887621382926
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Operating Temperature | -4 to 104 deg F |
|---|---|
| Terminal Type | Screw |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Width | 9 in |
| Enclosure Type | NEMA 4X |
| Dimensions | 24 in W x 7 in D x 24 in H |
| Coil Voltage | 380 to 440/440 to 480 VAC |
| Mounting Type | Surface |
| Material | Fiberglass |
| Operating Cycles | 5000000 Cycles |
| Contact Type | Non-Combination |
| BABA Compliant | No |
| Contact Rating | 10 A at 600 VAC (NEMA A600), 5 A at 600 VDC (NEMA P600) |
| Contact Configuration | 2NO-2NC |
| Connection Type | Box Lug |
| Series | Class 43 |
| Size | 3 |
| Coil Power Rating | 310 VA Pickup, 26 VA Holding |
| Wattage | 14 W |
| Maximum Load Current | 90 A |
| Type | 3-Phase Heavy Duty Full Voltage Reversing |
| Number of Auxiliary Contacts | 7 |
| Sold as | EACH |
