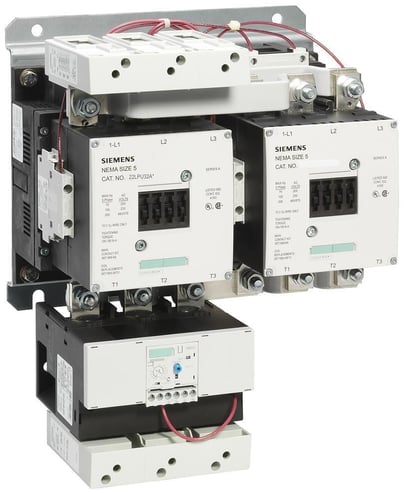

Siemens US2:22LPU32AE Full Voltage Non-Combination Open Enclosure Reversing Size 5 Motor Starter, 575 to 600 VAC at 50/60 Hz, 575 to 600 VDC V Coil
Siemens US2:22LPU32AE Full Voltage Non-Combination Open Enclosure Reversing Size 5 Motor Starter, 575 to 600 VAC at 50/60 Hz, 575 to 600 VDC V Coil
MPN US2:22LPU32AE
ASPN SIEUS2:22LPU32AE
UPC 754554839288
Description
Specifications
GTIN: 00754554839288
UNSPSC: 39121521
Alternative Part Number: 16924391
Country of Origin: United States of America (the)
| Operating Temperature | -4 to 104 deg F |
|---|---|
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 VAC |
| Connection Type | Box Lug/Screw Terminal |
| Phase | 3 |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid State |
| BABA Compliant | No |
| Amperage Rating | 270 A |
| Reset Type | Automatic/Manual |
| Coil Voltage | 575 to 600 VAC at 50/60 Hz, 575 to 600 VDC |
| Type | Full Voltage Non-Combination Open Enclosure Reversing Size 5 |
| Timing | 30 to 95 ms On-Delay/40 to 80 ms Off-Delay |
| Motor Power | 200 hp at 575/600 VAC |
| Auxiliary Contact Rating | 5 A at 600 VAC (B600)/1 A at 250 VDC (R300) |
| Full Load Current | 5 A |
| Dimensions | 6560 ft |
| Wattage | 7.4 W |
| Width | 21.8 in |
| Sold as | EACH |
