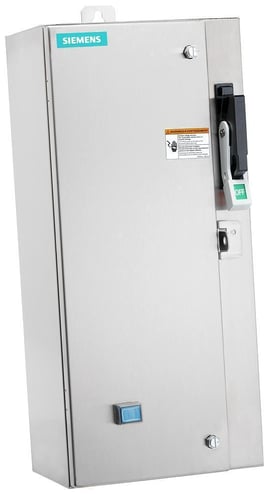

Siemens US2:18DUB92XA Heavy Duty Full Voltage Non-Reversing Combination Motor Starter, 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz V Coil, 3 Poles, NEMA 4X Enclosure
Siemens US2:18DUB92XA Heavy Duty Full Voltage Non-Reversing Combination Motor Starter, 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz V Coil, 3 Poles, NEMA 4X Enclosure
MPN US2:18DUB92XA
ASPN SIEUS2:18DUB92XA
UPC 887621295370
Description
Features
- Manufactured with cold forming TOX process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with class R fuses to 600 VAC or motor circuit protector to 480 VAC
- Visible blade disconnect
- Industrial type disconnect handle
- NEMA controller size 1
- Water/dust-tight, weatherproof and non-corrosive enclosure
- Standard width enclosure
Specifications
GTIN: 00887621295370
UNSPSC: 39121521
Alternative Part Number: 12295571
Country of Origin: United States of America (the)
| Type | Heavy Duty Full Voltage Non-Reversing |
|---|---|
| Operating Temperature | 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Wattage | 8.6 W |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 VAC |
| Full Load Current | 0.75 to 3.4 A |
| Enclosure Type | NEMA 4X |
| Dimensions | 11 in W x 8 in D x 24 in H |
| Coil Voltage | 110/190 to 220 VAC at 50 Hz, 110 to 120/220 to 240 VAC at 60 Hz |
| Connection Type | Box Lug/Screw Terminal |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Amperage Rating | 27 A |
| Material | 316 Stainless Steel |
| Motor Power | 1/2 hp at 200/230 VAC/1 hp at 460/575 VAC |
| Sold as | EACH |
