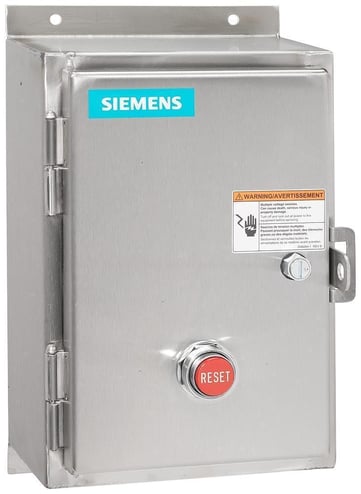

Siemens US2:14EUE32WS Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 24 VDC V Coil, 3 Poles, NEMA 4X Enclosure
Siemens US2:14EUE32WS Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 24 VDC V Coil, 3 Poles, NEMA 4X Enclosure
MPN US2:14EUE32WS
ASPN SIEUS2:14EUE32WS
UPC 887621287535
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 1-3/4
- Water/dust-tight, weatherproof and non-corrosive enclosure
- Standard width enclosure
Specifications
GTIN: 00887621287535
UNSPSC: 39121521
Alternative Part Number: 12259281
| Amperage Rating | 40 A |
|---|---|
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage | 24 VDC |
| Connection Type | Screw Terminal |
| Dimensions | 8 in W x 5 in D x 13 in H |
| Enclosure Type | NEMA 4X |
| Frequency Rating | 60 Hz |
| Full Load Current | 10 to 40 A |
| Material | 304 Stainless Steel |
| Motor Power | 10 hp at 200/208/220/230 VAC, 15 hp at 460/480/575/600 VAC |
| Number of Poles | 3 |
| Operating Cycles | 10000000 Cycles |
| Operating Temperature | 104 deg F |
| Overload Relay | Solid-State |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Timing | 21 ms On/11 ms Off |
| Type | Heavy Duty Full Voltage Non-Reversing |
| Voltage Rating | 600 VAC |
| Sold as | EACH |
