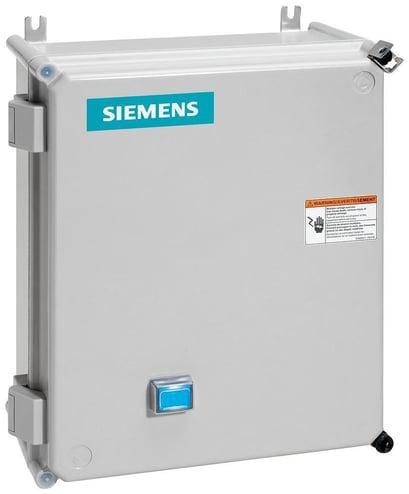

Siemens US2:14DUB32FC Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 4X Enclosure
Siemens US2:14DUB32FC Heavy Duty Full Voltage Non-Reversing Non-Combination Motor Starter, 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz V Coil, 3 Poles, NEMA 4X Enclosure
MPN US2:14DUB32FC
ASPN SIEUS2:14DUB32FC
UPC 887621285234
Description
Features
- Rugged industrial design
- Half sizes for cost and space savings
- Dual voltage and dual frequency coils
- Wide range of accessories
- Easy coil access
- Overload test feature
- Straight thru wiring
- Gravity drop-out
- Large silver cadmium contacts
- Suitable for 3-wire pilot control (NO auxiliary contact included)
- NEMA controller size 1
- Water/dust-tight, weatherproof and non-corrosive enclosure
- Standard width enclosure
Specifications
GTIN: 00887621285234
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Type | Heavy Duty Full Voltage Non-Reversing |
|---|---|
| Operating Temperature | 104 deg F |
| Number of Poles | 3 |
| Auxiliary Contact Rating | 10 A at 600 VAC, 5 A at 600 VDC |
| Wattage | 8.6 W |
| Timing | 19 to 29 ms On/10 to 24 ms Off |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 VAC |
| Weight | 1.6 lbs |
| Full Load Current | 0.75 to 3.4 A |
| Enclosure Type | NEMA 4X |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Operating Cycles | 10000000 Cycles |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Amperage Rating | 27 A |
| Material | Fiberglass |
| Connection Type | Screw Terminal |
| Coil Voltage | 190 to 220/380 to 440 VAC at 50 Hz, 220 to 240/440 to 480 VAC at 60 Hz |
| Motor Power | 1/2 hp at 200/208 VAC, 3/4 hp at 220/230 VAC, 1-1/2 hp at 460/480 VAC, 2 hp at 575/600 VAC |
| Dimensions | 12 in W x 7 in D x 15 in H |
| Sold as | EACH |
