Description

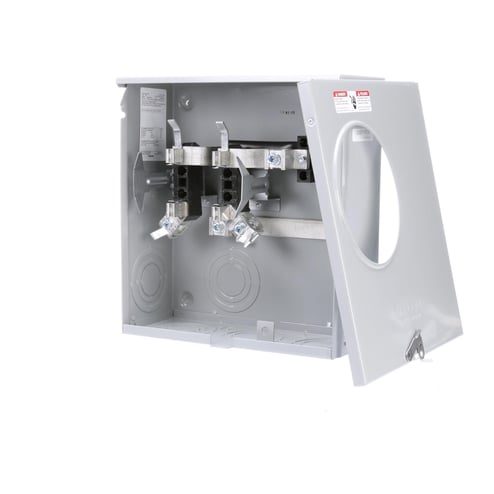

Siemens TALON® Meter Socket, 1-Position 3-Wire Type UAS8/9, Series: UAS, 600 VAC, 200 A, 1 ph, Underground Feed, 4 Jaws, 6 AWG to 350 kcmil Wire, Blank Top Hub, Ringless Cover, Surface Mounting, NEMA 3R Enclosure, 13 in H x 14 in W x 5.1 in D Dimensions
Siemens/Talon® meter socket designs have been in the industry for more than 60 years. No one knows metering installations like Siemens. Our meter sockets set the standard for quality, design and workmanship. This is why we use stainless steel hardware polyester powder coat paint for long lasting protection and appearance type G90 galvanized steel or 3003 grade aluminum enclosures and, in our commercial sockets, an all plated copper current path. This is why Siemens meter sockets are seen in so many utility specifications.
Features
- Residential single position sockets (types UAT) feature a quad neutral as a standard feature
- 16 ga galvanized steel, G-90 material
- All swing latches are stainless steel
- Glass reinforced polyester block material
- Tin plated aluminum extrusions 6061-T6 terminal strip
- Horn bypass
Specifications
GTIN: 00783643181007
UNSPSC: 39121102
Alternative Part Number: 9503634
| Wire Size | 6 AWG to 350 kcmil |
|---|---|
| Voltage Rating | 600 VAC |
| Enclosure Type | NEMA 3R |
| Dimensions | 13 in H x 14 in W x 5.1 in D |
| Mounting Type | Surface |
| Series | UAS |
| Number of Jaws | 4 |
| Phase | 1 |
| Amperage Rating | 200 A |
| BABA Compliant | No |
| Cover Type | Ringless |
| Hub Type | Blank Top |
| Feed Type | Underground |
| Type | 1-Position 3-Wire Type UAS8/9 |
| Sold as | EACH |
