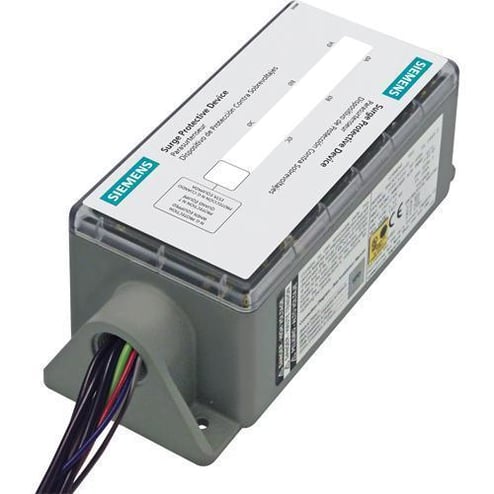

Siemens TPS3E0910DI0 TPS3 09 Type 1 External Low Voltage Surge Protective Device With Dry Contact, Audible Alarm, 277/480 VAC, 47 to 63 Hz, 200 kA SCCR, 3 Phase
Siemens TPS3E0910DI0 TPS3 09 Type 1 External Low Voltage Surge Protective Device With Dry Contact, Audible Alarm, 277/480 VAC, 47 to 63 Hz, 200 kA SCCR, 3 Phase
MPN TPS3E0910DI0
ASPN SIETPS3E0910DI0
UPC 40892250107
Description
Features
- UL 96A lightning protection master labeling compliant
- Every MOV is monitored, including N-G
- Mounts external to electrical distribution equipment
- Mounts internal to P1 panelboards and busway, P1 - field retrofit or factory install, P2 and P3 - factory install only
- Standard compact NEMA 4X polycarbonate enclosure
- Large block, individually fused, thermally protected, 50 kA MOVs
- All UL required OCP and safety coordination included
Specifications
GTIN: 00040892250107
UNSPSC: 39121610
Country of Origin: United States of America (the)
| Type | Type 1 External Low Voltage |
|---|---|
| Number of Wires | 4 |
| Frequency Rating | 47 to 63 Hz |
| Enclosure Type | NEMA 4X |
| Short Circuit Current Rating | 200 kA |
| Mounting Type | Wall |
| Phase | 3 |
| Electrical Ratings | 277/480 VAC |
| Response Time | <1 ns |
| BABA Compliant | No |
| Environmental Conditions | -25 to 60 deg C Operating Temperature, 0 to 95% Non-Condensing Relative Humidity |
| Indicator Type | LED |
| Series | TPS3 09 |
| Peak Surge Current | 100 kA |
| Dimensions | 8.3 in L x 3.6 in W x 3 in H |
| Modes of Protection | L-N/L-G/N-G/L-L |
| Width | 2.9 in |
| Sold as | EACH |
