Description

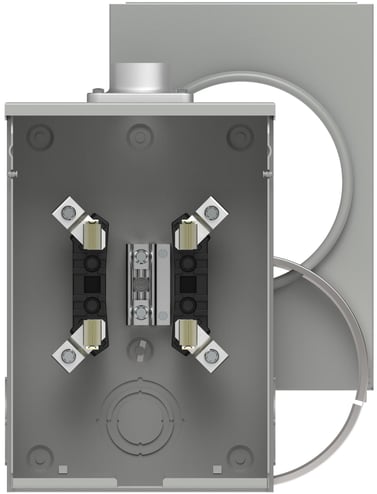

Siemens TALON Meter Socket, 1-Position Type UAT1, 600 VAC, 135 A, 1 ph, Overhead/Underground Feed, 4 Jaws, 14 to 2/0 AWG Wire, 1-1/4 in Hub, Ring Cover, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 11.7 in H x 8 in W x 3.7 in D Dimensions
Siemens meter socket designs have been in the industry for more than 60 years. No 1-knows metering installations like Siemens. Our meter sockets set the standard for quality, design and workmanship. This is why we use stainless steel hardware, polyester powder coat paint for long lasting protection and appearance, type G90 galvanized steel or 3003 grade aluminum enclosures and in our commercial sockets, an all plated copper current path. This is why Siemens meter sockets are seen in so many utility specifications.
Features
- With hub, ground lug and sealing ring
- Without bypass
- Residential single position sockets (types UAT) feature a quad neutral as a standard feature
- Most commercial sockets include a ground lug and some models are available with line and load lugs installed
- Lever bypass sockets feature the type HQ socket which is recognized by utilities as the industry standard for durability and quality
- Siemens features one of the most complete and comprehensive meter socket lines
- Steel construction
Specifications
GTIN: 00783643334458
UNSPSC: 39121102
Alternative Part Number: 7600323
Country of Origin: Mexico
| Voltage Rating | 600 VAC |
|---|---|
| Enclosure Type | NEMA 3R |
| Phase | 1 |
| BABA Compliant | No |
| Terminal Type | Lug |
| Type | 1-Position Type UAT1 |
| Amperage Rating | 135 A |
| Hub Size | 1-1/4 in |
| Mounting Type | Surface |
| Wire Size | 14 to 2/0 AWG |
| Weight | 36.8 lbs |
| Feed Type | Overhead/Underground |
| Cover Type | Ring |
| Number of Jaws | 4 |
| Dimensions | 11.7 in H x 8 in W x 3.7 in D |
| Sold as | EACH |
