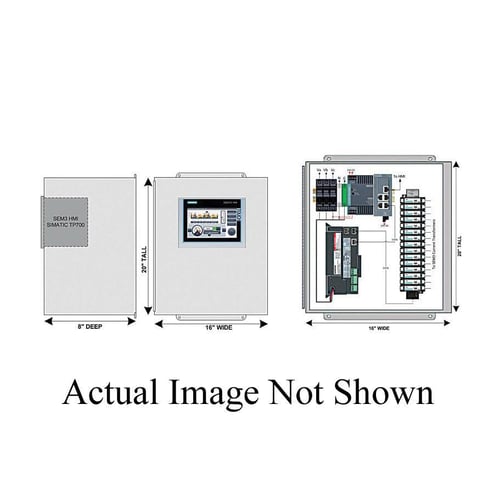

Siemens SEM342ENCL1D Enclosure With Display, 20 in W x 8 in D x 20 in H, NEMA 1, Steel

Siemens Enclosure, Series: SEM3™, 20 in Width, 8 in Depth, 20 in Height, NEMA 1, Wall Mount, Steel, Painted, Gray

The SEM3™ standalone enclosure is ideal for retrofit/external wall mount applications, as it requires minimal modification of existing systems while gaining full functionality of the SEM3™ branch circuit monitoring solution. Installation of the required milliamp current transformers (CT) is minimized by utilizing the Siemens split core CTs ranging from 50 to 1200 A. SEM3™ standard enclosures are available with NEMA 1, 4 and 12 ratings. The SEM3™ meter enclosure is shipped with all the required components installed. The control voltage is wired to a fusible disconnect software itch to protect the system and to provide a disconnect from outside Power to the meter. SEM3™ CTs are self shorting, not requiring a shorting block in the enclosure/panel. The enclosure has a ground lug for equipment grounding. When the control voltage is greater than 480 V, a CPT is provided between the disconnect software itch and SEM3™ controller. The enclosure is pre-drilled to make mounting quick and easy. The standard enclosure comes with the controller, Power supply, disconnect, meter racks, communication cables and short ting blocks. Meter modules and CTs are added separately. As mentioned previously, the display is available as an option.
