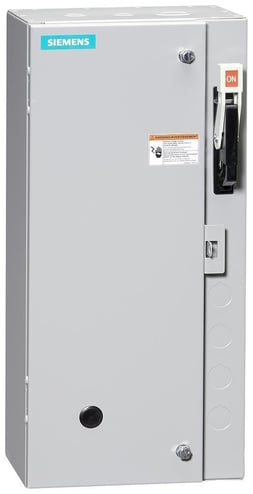

Siemens LEFA1C003347B B Series Class LE Electrically Held Fusible Combination Lighting Contactor With 250 V, 30 A Fusible Disconnect Switch, 347 VAC Coil, 30 A, 3NO Contact, 3 Poles
Siemens LEFA1C003347B B Series Class LE Electrically Held Fusible Combination Lighting Contactor With 250 V, 30 A Fusible Disconnect Switch, 347 VAC Coil, 30 A, 3NO Contact, 3 Poles
MPN LEFA1C003347B
ASPN SIELEFA1C003347B
UPC 40892863802
Description
Features
- Simplicity and compact lightweight design makes Class LE lighting contactors an attractive solution to your budgeting challenges
- Used in applications where it is not critical that contacts remain closed if control power is lost
- Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
- 3 and 4-pole (up to 12-pole for 30 and 60 A contactors)
- Most contactors have built-in auxiliary contacts for convenient 3-wire control
- Compact design allows for smaller panels and more wiring room
- Finger and back-of-hand safe terminals
- Full line of factory and field modifications
- Compact design, finger-safe control terminals
Specifications
GTIN: 00040892863802
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Terminal Type | Box Lug/Screw |
|---|---|
| Maximum Load Current | 30 A |
| Number of Poles | 3 |
| Wattage | 87 VA Pickup, 9.4 VA Holding |
| Frequency Rating | 60 Hz |
| Width | 13 in |
| Enclosure Type | NEMA 1 |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Mounting Type | Surface |
| Series | B Series |
| Contact Configuration | 3NO |
| Volume | 501.1 cubic inches |
| BABA Compliant | No |
| Operating Cycles | 10000000 |
| Contact Rating | 30 A at 277/347/480/600 VAC |
| Coil Voltage | 347 VAC |
| Operating Temperature | 32 to 104 deg F |
| Type | Class LE Electrically Held Fusible Combination |
| Number of Auxiliary Contacts | 1NO-1NC |
| Sold as | EACH |
