Description

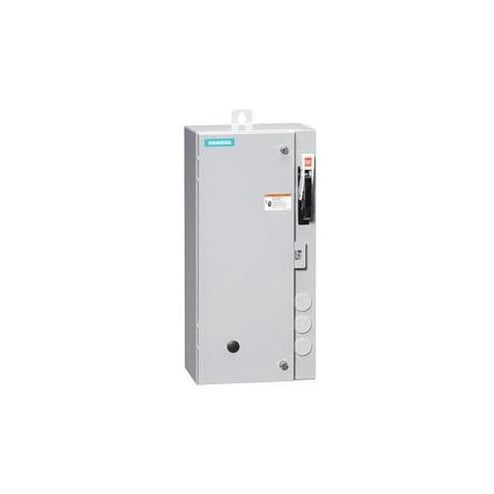

Siemens Lighting Contactor, Electrically Held, Series: Class LE, 347 VAC Coil, 87 VA Pickup, 9.4 VA Holding Coil, 3 Pole, 60 Hz Frequency, Combination Circuit Breaker Contact, 3NO-0NC Contact Configuration, 4 Auxiliary Contacts, 30 A at 277/480/347/600 VAC Contact, Box Lug Connection, Screw Terminal, NEMA 3/3R/4/12 Enclosure, 10000000 Cycles Operating Cycles, 104 deg F Operating, Surface Mounting, 24 in H x 11 in W x 8 in D Dimensions
These Contactors are used in applications where it is not critical that the contacts remain in the closed position during loss of control power. Simplicity and compact lightweight design makes these contactors an attractive solution to your budgeting challenges.
Features
- Full line of enclosures including NEMA 1, 3/3R, 4, 4/4X stainless steel and 12
Specifications
GTIN: 00040892863369
UNSPSC: 39121529
Alternative Part Number: 11263265
Country of Origin: United States of America (the)
| Operating Temperature | 104 deg F |
|---|---|
| Terminal Type | Screw |
| Number of Poles | 3 |
| Frequency Rating | 60 Hz |
| Coil Power Rating | 87 VA Pickup, 9.4 VA Holding |
| Mounting Type | Surface |
| Connection Type | Box Lug |
| Operating Cycles | 10000000 Cycles |
| Contact Type | Combination Circuit Breaker |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Dimensions | 24 in H x 11 in W x 8 in D |
| Type | Electrically Held |
| Enclosure Type | NEMA 3/3R/4/12 |
| Coil Voltage | 347 VAC |
| Series | Class LE |
| Contact Configuration | 3NO-0NC |
| Contact Rating | 30 A at 277/480/347/600 VAC |
| Sold as | EACH |
