Description

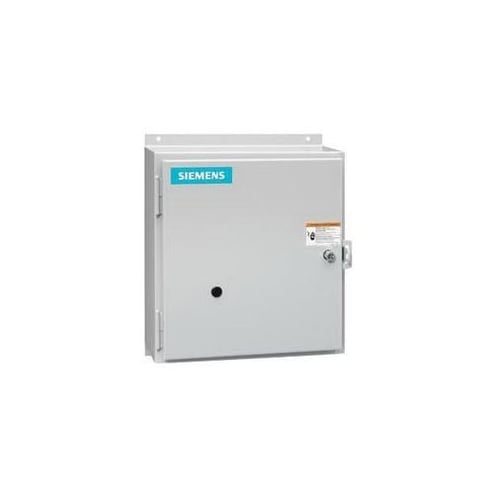

Siemens Lighting Contactor, Electrically Held, Series: Class LC, 200 to 208 VAC Coil, 248 VA Pickup, 28 VA Holding Coil, 60 Hz Frequency, Non-Combination Contact, 5NO-3NC Contact Configuration, 4 Auxiliary Contacts, 20 A at 277/480 VAC, 30 A at 347/600 VAC Contact, Screw Terminal, NEMA 4/4X Enclosure, 100000 Cycles Operating Cycles, 104 deg F Operating, Surface Mounting, 304 Stainless Steel, 16 in H x 13 in W x 6 in D Dimensions
This class of lighting contactors deliver unprecedented versatility in application, simplicity in configuration and performance in operation. Ingenious design, rugged construction, and a host of truly useful features make them uniquely appealing.
Features
- Convenient side access field power wiring
- A simple kit easily converts electrically held units to mechanically held and includes a 2 or 3-wire control module
- Contact position indication - when button protrudes, contact is closed
- Power poles can easily be added at any time based on changing needs
- Furthermore, they may be converted from NO to NC (or vice versa) simply by repositioning
- Convertible to mechanically held
- Water/dust tight, non-corrosive enclosure
- 20 A tungsten current rating
Specifications
GTIN: 00040892848748
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Operating Temperature | 104 deg F |
|---|---|
| Terminal Type | Screw |
| Frequency Rating | 60 Hz |
| Coil Power Rating | 248 VA Pickup, 28 VA Holding |
| Width | 4.9 in |
| Coil Voltage | 200 to 208 VAC |
| Mounting Type | Surface |
| Contact Rating | 20 A at 277/480 VAC, 30 A at 347/600 VAC |
| Operating Cycles | 100000 Cycles |
| Contact Type | Non-Combination |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Contact Configuration | 5NO-3NC |
| Material | 304 Stainless Steel |
| Series | Class LC |
| Dimensions | 16 in H x 13 in W x 6 in D |
| Enclosure Type | NEMA 4/4X |
| Type | Electrically Held |
| Sold as | EACH |
