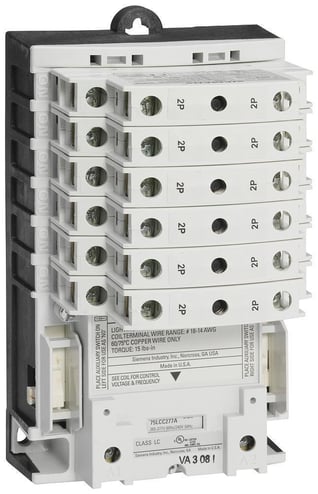

Siemens LCE00C105120A Class LC Electrically Held Lighting Contactor, 110 VAC, 115 to 120 VAC V Coil, 30 A, 5NO-1NC Contact, 6 Poles
Siemens LCE00C105120A Class LC Electrically Held Lighting Contactor, 110 VAC, 115 to 120 VAC V Coil, 30 A, 5NO-1NC Contact, 6 Poles
MPN LCE00C105120A
ASPN SIELCE00C105120A
UPC 40892829211
Description
Features
- Convenient side access field power wiring
- Contact position indication when button protrudes, contact is closed
- A simple kit easily converts electrically held units to mechanically held and includes a 2 or 3-wire control module
- Standard base enables contactor to be field expandable for flexibility and future needs
- Power poles can easily be added at any time based on changing needs
- Furthermore, they may be converted from NO to NC (or vice versa) simply by repositioning
- Plug-in auxiliary contacts are NO when installed on the left side of the contactor, NC on the right
- Finger and back of hand safe terminals
- Used in all applications where either electrically or mechanically held contactors are specifically suited and also ideal for maximum flexibility and future expansion
- Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
- Contacts are rated up to 30 A at 600 VAC
- Can be ordered as either electrically or mechanically held and can also be converted from electrically to mechanically held in the field with a simple conversion kit
- Modular design enables you to stock the building block components to assemble all configurations of both the electrically and mechanically held contactors thus dramatically reducing inventory
- Full line of factory and field modifications
- 115 to 120 VAC at 60 Hz, 110 VAC at 50 Hz coil voltage
Specifications
GTIN: 00040892829211
UNSPSC: 39121529
Country of Origin: United States of America (the)
| Type | Class LC Electrically Held |
|---|---|
| Operating Temperature | -13 to 104 deg F |
| Terminal Type | Screw |
| Maximum Load Current | 30 A |
| Number of Poles | 6 |
| Frequency Rating | 50/60 Hz |
| Coil Power Rating | 248 VA Pickup, 28 VA Holding |
| Width | 2.8 in |
| Enclosure Type | Open |
| Dimensions | 7.39 in H x 4.18 in W x 3.86 in D |
| Coil Voltage | 110 VAC, 115 to 120 VAC |
| Mounting Type | Surface |
| Contact Configuration | 5NO-1NC |
| Contact Rating | 20 A at 277/480 VAC, 30 A at 347/600 VAC |
| Operating Cycles | 100000 Cycles |
| Contact Type | Non-Combination |
| Number of Auxiliary Contacts | 4 |
| BABA Compliant | No |
| Sold as | EACH |
