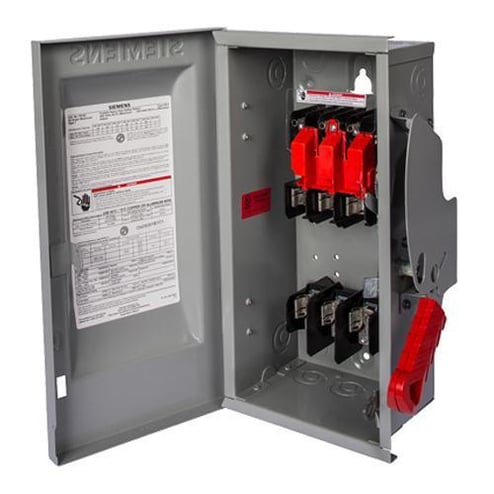

Siemens HF263J Type VBII Enclosed Fusible Heavy Duty Single Throw Safety Switch, 600 VAC, 100 A, 15 hp, 40 hp, ST Contact, 2 Poles
Siemens HF263J Type VBII Enclosed Fusible Heavy Duty Single Throw Safety Switch, 600 VAC, 100 A, 15 hp, 40 hp, ST Contact, 2 Poles
MPN HF263J
ASPN SIEHF263J
UPC 783643174023
Description
Features
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip
- Designed for hook stick operation
- Defeatable dual cover interlock
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens past 180 degrees for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper/aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
Specifications
GTIN: 00783643174023
UNSPSC: 39122205
Alternative Part Number: 7542382
Country of Origin: Mexico
| Type | Type VBII Enclosed Fusible Heavy Duty Single Throw |
|---|---|
| Terminal Type | Lug |
| Number of Poles | 2 |
| Frequency Rating | 60 Hz |
| Voltage Rating | 600 VAC |
| Width | 7.6 in |
| Enclosure Type | NEMA 12 |
| Mounting Type | Surface |
| Phase | 1 |
| Material | Steel |
| Amperage Rating | 100 A |
| Temperature Rating | -29 to 85 deg C |
| BABA Compliant | No |
| Contact Form | ST |
| Number of Wires | 2 |
| Horsepower | 15 hp, 40 hp |
| Sold as | EACH |
