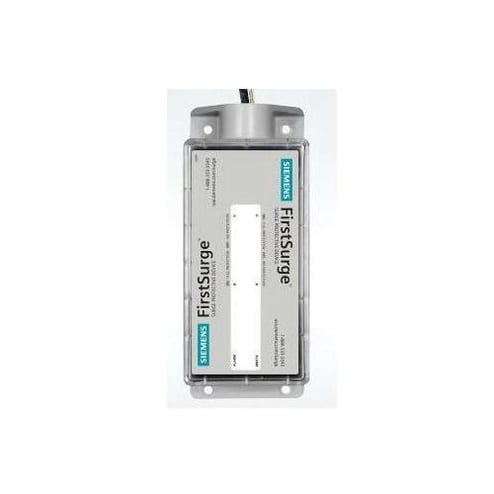

Siemens FirstSurge™ Pro FS140TCP Type 2 External Low Voltage Surge Protective Device, 120/240 VAC, 50/60 Hz, 2 Poles, 100 kA SCCR, 1 Phase


Description

Siemens FirstSurge™ Pro Surge Protective Device, Type 2 External Low Voltage, 120/240 VAC, 50/60 Hz, 2 Poles, 3+G Wires, 100 kA Short Circuit Current, 140 kA Peak Surge, 20 kA Nominal Discharge, Modes of Protection: L-N, L-G, N-G, L-L, <1 ns Response, LED Indicator, 1 Phase, Environmental Conditions: -40 to 140 deg F Operating, NEMA 3R/4/4X/IP56, Chase Nipple/Surface Mount, Wire Terminal, Polycarbonate, 8 in L x 3 in W x 4 in H

Siemens believes today's residential surge protectors come up short when protecting today's modern home filled with smart appliances and electronics. This is why we developed our FirstSurge™ commercial class total home surge protectors. These electrical system surge protectors are sized for where you live. They will let you know when there is something wrong or when they are worn out. Based upon thunderstorm frequency, geographic location and home size, we developed a surge exposure map correlating with FirstSurge™ current capacities known to provide years of protective service for each shaded area.

Features

  • Surge current capacity - FirstSurge™ offers three different surge protector sizes based upon geographic location and thunderstorm activity
  • 3-Stage diagnostics - when FirstSurge™ wears out, the protection status LEDs extinguish, an audible alarm beeps and a red service light flashes to warn the homeowner
  • Balanced VPR protection - all primary paired conductors are surge protected in a balanced manner with 600 V UL1449 VPR
  • Ground Reference Monitoring - GRM diagnostics monitor the health of a home's neutral to ground bond and alert the homeowner if the bond becomes loose, preventing a potential safety issue
  • To effectively surge protect all of your home's equipment, Siemens developed the FirstSurge™ family of surge protective devices
  • They stop surges right at your incoming services before they can travel down the power, cable and telephone lines damaging your equipment
  • Siemens FirstSurge™ stops power surges from entering your electrical system protecting smart appliances, TVs, computers, heating and cooling systems and more
  • Rated for 120/240 VAC split phase panels up to 400 A
  • Installs onto any brand load center
  • Type 4 rated outdoor enclosure
  • Phone and coaxial connector
  • Clamshell packaging
  • 600 V L-N, 600 V L-G, 600 V N-G, 900 V L-L voltage protection rating

Specifications

GTIN: 00804766370243

UNSPSC: 39121610

Country of Origin: United States of America (the)

Number of Poles
2
Frequency Rating
50/60 Hz
Width
3.5 in
Short Circuit Current Rating
100 kA
Peak Surge Current
140 kA
Phase
1
Material
Polycarbonate
Environmental Conditions
-40 to 140 deg F Operating
Response Time
<1 ns
BABA Compliant
No
Electrical Ratings
120/240 VAC
Indicator Type
LED
Mounting Type
Chase Nipple/Surface
Dimensions
8 in L x 3 in W x 4 in H
Enclosure Type
NEMA 3R/4/4X/IP56
Nominal Discharge Current
20 kA
Modes of Protection
L-N, L-G, N-G, L-L
Number of Wires
3+G
Terminal Type
Wire
Type
Type 2 External Low Voltage
Sold as
EACH
