Description

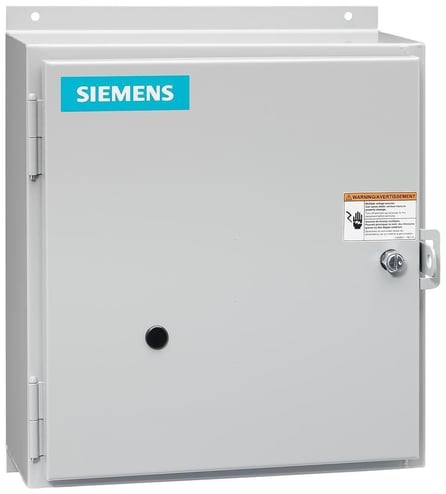

Siemens Lighting Contactor, 110/120 VAC Coil, 30 A Maximum Load Current, 820 VA Pickup, 80 VA Holding Coil, 6 Pole, 50/60 Hz Frequency, Non-Combination Contact, 6NO Contact Configuration, 4 Auxiliary Contacts, Screw Connection, NEMA 1 Enclosure, 10000000 Contactor/Typical Cycles Operating Cycles, Surface Mounting, 16 in H x 17 in W x 8 in D Dimensions
Features
- Mechanically held operational mode
- Copper material of the conductor for supply, load side outgoing feeder and at magnet coil
- 75 deg C temperature of the conductor for load-side outgoing feeder maximum permissible, conductor at magnet coil maximum permissible, conductor for supply maximum permissible
Specifications
GTIN: 00783087771260
UNSPSC: 39121529
Alternative Part Number: 7482492
Country of Origin: United States of America (the)
| Maximum Load Current | 30 A |
|---|---|
| Frequency Rating | 50/60 Hz |
| Enclosure Type | NEMA 1 |
| Mounting Type | Surface |
| BABA Compliant | No |
| Contact Type | Non-Combination |
| Operating Cycles | 10000000 Contactor/Typical Cycles |
| Number of Auxiliary Contacts | 4 |
| Number of Poles | 6 |
| Coil Power Rating | 820 VA Pickup, 80 VA Holding |
| Dimensions | 16 in H x 17 in W x 8 in D |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw |
| Contact Configuration | 6NO |
| Sold as | EACH |
