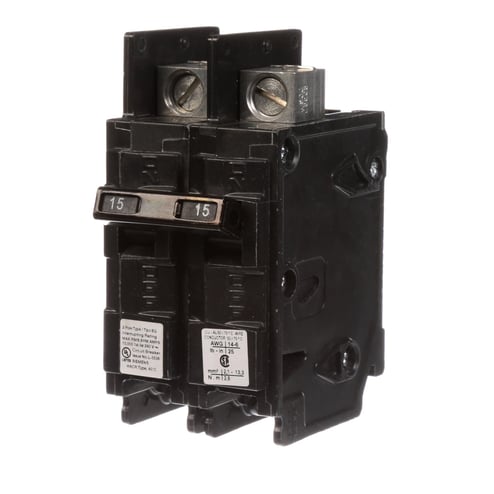

Siemens BQ2H015L Low Voltage Molded Case Circuit Breaker With Insta Wire, 240 VAC, 15 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip


Description

Siemens Molded Case Circuit Breaker, Low Voltage, 240 VAC, 15 A, 10 kA Interrupt, BQ Frame, Thermal/Magnetic Trip, 2 Pole, Line/Load Side Lug Connection, 14 to 10 AWG Cu/12 to 10 AWG Al Wire, Bolted-On Mounting, 40 deg C, 4 in L x 2 in W x 3 in H Dimensions

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.

Specifications

GTIN: 00783643000742

UNSPSC: 39121601

Country of Origin: Mexico

Type
Low Voltage
Trip Type
Thermal/Magnetic
Wire Size
14 to 10 AWG Cu/12 to 10 AWG Al
Interrupt Rating
10 kA
Number of Poles
2
Voltage Rating
240 VAC
Dimensions
4 in L x 2 in W x 3 in H
Mounting Type
Bolted-On
Connection Type
Line/Load Side Lug
Amperage Rating
15 A
Temperature Rating
40 deg C
Frame
BQ
BABA Compliant
No
Sold as
EACH
