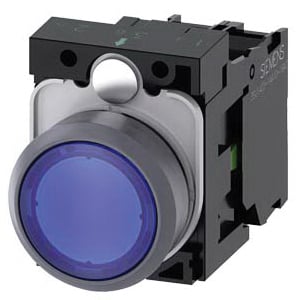

Siemens SIRIUS ACT A6X30143967 3SU11 Complete Round Illuminated Pushbutton With Holder, 24 VACVDC Integrated LED Module and Laser Labeling, 22 mm, 1NO Contact, Silver Alloy Contact, Flat Button Operator, BlueSand Gray


Description

Siemens SIRIUS ACT Illuminated Pushbutton, Complete Round, Series: 3SU11, 22 mm, 1NO, Silver Alloy Contact, Momentary Contact Mode, Flat Button Operator, LED Lamp, Bezel/Housing: Metal, Solder Pin, Spring Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K, Front Plate/Panel Mount, Plastic, Matte, Blue/Sand Gray, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Symbol with number according to ISO 7000 or IEC 60417

Specifications

GTIN: 00804766653780

UNSPSC: 39122216

Alternative Part Number: 3SU11320AB503BA0-Z Y13

Country of Origin: Germany

Type
Complete Round
Terminal Type
Spring
Size
22 mm
Contact Mode
Momentary
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Lamp Type
LED
Operator Type
Flat Button
Mounting Type
Front Plate/Panel
Series
3SU11
Connection Type
Solder Pin
Material
Plastic
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Finish
Matte
Contact Type
Silver Alloy
Bezel/Housing
Metal
BABA Compliant
No
Contact Configuration
1NO
Width
5.7 in
Color
Blue/Sand Gray
Sold as
EACH
