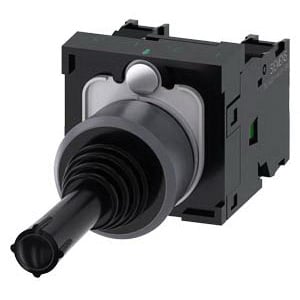

Siemens SIRIUS ACT A6X30142590 3SU11 Non-Illuminated Round Coordinate Switch With Front Ring, Laser Labeling and Holder, 5 to 500 VACVDC, 2NO Contact, 2 Positions
Siemens SIRIUS ACT A6X30142590 3SU11 Non-Illuminated Round Coordinate Switch With Front Ring, Laser Labeling and Holder, 5 to 500 VACVDC, 2NO Contact, 2 Positions
MPN A6X30142590
ASPN SIEA6X30142590
UPC 804766640025
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Text line in upper/lower case, all lines begin with upper case letters
- Without mechanical interlocking
Specifications
GTIN: 00804766640025
UNSPSC: 39122227
Alternative Part Number: 3SU11307AC101NA0-Z_Y10
Country of Origin: Germany
| Terminal Type | Screw |
|---|---|
| Voltage Rating | 5 to 500 VAC/VDC |
| Size | 22 mm |
| Material | Plastic |
| Finish | Matte |
| Bezel/Housing | Metal |
| BABA Compliant | No |
| Operating Cycles | 500000 Cycles |
| Environmental Conditions | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity |
| Contact Configuration | 2NO |
| Series | 3SU11 |
| Mounting Type | Front Panel |
| Operator Type | Extended Handle |
| Number of Positions | 2 |
| Enclosure Type | IP20/IP65/IP67 |
| Width | 2.1 in |
| Contact Mode | Momentary |
| Color | Black/Sand Gray |
| Type | Non-Illuminated Round |
| Sold as | EACH |
