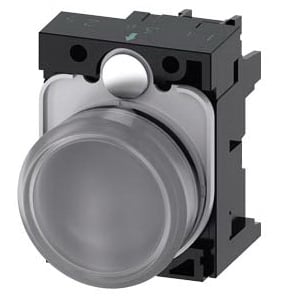

Siemens SIRIUS ACT A6X30141973 3SU11 Complete Illuminated Indicator Light With Plastic Holder and Laser Labeling, 24 VACVDC, 2 A, Smooth Lens, Front PlatePanel Mount


Description

Siemens SIRIUS ACT Indicator Light, Complete Illuminated, Series: 3SU11, 24 VAC/VDC, 2 A, Smooth Lens, Clear Lens, Plastic Lens, LED Lamp, 900 to 1400 mcd, Bezel/Housing: Plastic, Black, 22 mm, Round, Screw Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K, Front Plate/Panel Mount, Environmental Conditions: -25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. It can be flexibly configured to specific customer requirements and features extensive accessories. For common applications, complete devices are offered.

Features

  • Rugged and durable, even in a tough environment, thanks to IP69K protection (including IP66, IP67, IP69)
  • High media resistance, for example, to oils, aggressive vapors and caustic solutions
  • Easy to operate, thanks to improved haptic properties and illumination
  • Fast, single handed installation thanks to retentive actuator function
  • Twist prevention integrated into patented holder design
  • Alignment arrows and distinct module slots for reliable connection
  • No special tools required, simple size 2 screwdriver
  • Communication solutions - AS-interface, IO-Link or PROFINET/PROFIsafe
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Stackable contact modules
  • Components can be mounted with holder removed
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • Inscription of choice, text or symbol, can only be ordered via SIRIUS ACT configurator with a Configuration Identification Number (CIN)

Specifications

GTIN: 00804766633850

UNSPSC: 39121534

Alternative Part Number: 3SU11026AA701AA0-Z Y19

Country of Origin: Germany

Terminal Type
Screw
Color
Black
Voltage Rating
24 VAC/VDC
Size
22 mm
Width
2 in
Shape
Round
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K
Lamp Type
LED
Mounting Type
Front Plate/Panel
Series
3SU11
Amperage Rating
2 A
Environmental Conditions
-25 to 70 deg C Operating, -40 to 80 deg C Storage, 10 to 95% Relative Humidity
Lens Color
Clear
Bezel/Housing
Plastic
BABA Compliant
No
Lens Type
Smooth
Lens Material
Plastic
Lumens
900 to 1400 mcd
Type
Complete Illuminated
Sold as
EACH
