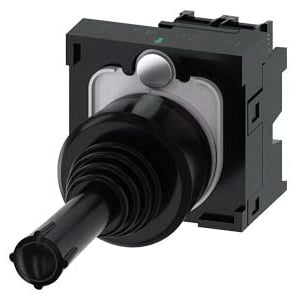

Siemens SIRIUS ACT A6X30141710 3SU11 Non-Illuminated Round Coordinate Switch With Front Ring and Holder, 5 to 500 VACVDC, 2NO Contact, 2 Positions
Siemens SIRIUS ACT A6X30141710 3SU11 Non-Illuminated Round Coordinate Switch With Front Ring and Holder, 5 to 500 VACVDC, 2NO Contact, 2 Positions
MPN A6X30141710
ASPN SIEA6X30141710
UPC 804766631221
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Without mechanical interlocking
Specifications
GTIN: 00804766631221
UNSPSC: 39122216
Alternative Part Number: 3SU11007AD101NA0-Z_X90
Country of Origin: Germany
| Type | Non-Illuminated Round |
|---|---|
| Terminal Type | Screw |
| Color | Black |
| Size | 22 mm |
| Contact Mode | Momentary |
| Enclosure Type | IP20/IP65/IP67 |
| Number of Positions | 2 |
| Operator Type | Extended Handle |
| Material | Plastic |
| Contact Configuration | 2NO |
| Operating Cycles | 500000 Cycles |
| Bezel/Housing | Plastic |
| BABA Compliant | No |
| Environmental Conditions | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 95% Relative Humidity |
| Series | 3SU11 |
| Mounting Type | Front Panel |
| Voltage Rating | 5 to 500 VAC/VDC |
| Sold as | EACH |
