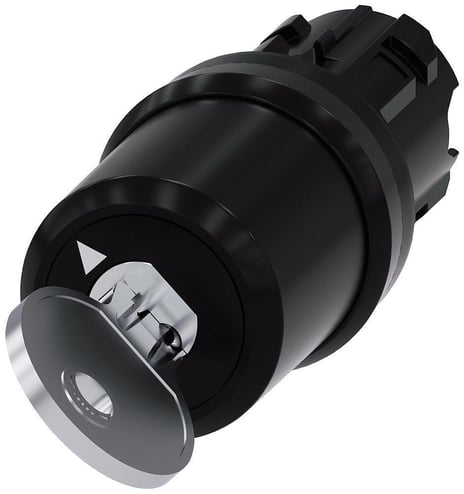

Siemens SIRIUS ACT A6X30136417 3SU10 Non-Illuminated Round Switch Operator With Front Ring and Laser Labeling, 22 mm, BKS E7 KeyLatching Operator, 2 Positions, BlackSilver
Siemens SIRIUS ACT A6X30136417 3SU10 Non-Illuminated Round Switch Operator With Front Ring and Laser Labeling, 22 mm, BKS E7 KeyLatching Operator, 2 Positions, BlackSilver
MPN A6X30136417
ASPN SIEA6X30136417
UPC 804766577789
Description
Features
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- No special tools required, simple size 2 screwdriver (cross-tip DIN ISO 87641PZD1, flat-head DIN ISO 2380-1 A/B 1x4.5) is sufficient
- Text in lower case
- Without key
- 90 deg (10:30 hr/13:30 hr)
Specifications
GTIN: 00804766577789
UNSPSC: 39122216
Alternative Part Number: 3SU10005SF010AA0-Z Y12
Country of Origin: Germany
| Type | Non-Illuminated Round |
|---|---|
| Size | 22 mm |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/13/IP20/IP66/IP67/IP69/IP69K |
| Number of Positions | 2 |
| Series | 3SU10 |
| Material | Metal/Plastic |
| Volume | 29474.5 cubic inches |
| Temperature Rating | -25 to 70 deg C |
| Bezel/Housing | Plastic |
| BABA Compliant | No |
| Operator Type | BKS E7 Key/Latching |
| Throw | 90 deg |
| Width | 42 in |
| Color | Black/Silver |
| Sold as | EACH |
