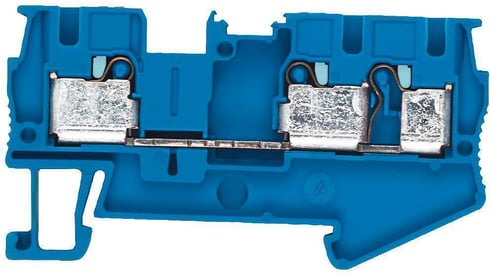

Siemens Sentron™ ALPHA FIX 8WH6003-0AG01 8WH6 3-Clamping Point Feed-Through PE Terminal Single Level Terminal Block, 800 V, 32 A, 0.2 to 6 sq-mm Wire, DIN Rail Mount


Description

Siemens Sentron™ ALPHA FIX Terminal Block, 3-Clamping Point Feed-Through PE Terminal Single Level, Series: 8WH6, 800 V, 32 A, 0.2 to 6 sq-mm Wire, 12 mm Wire Strip Length, Plug-In Terminal, 4 sq-mm Terminal, 6.2 mm Spacing, DIN Rail Mount, 55 deg C, Thermoplastic, Blue, 66.5 mm L x 6.2 mm W x 36.5 mm H

8WH6 through-type terminals are ideal for the direct tool-free wiring of conductors with end sleeve or rigid conductors. Easy insertion of flexible conductors with end sleeves upwards of 0.34 sq-mm. The actuation button can be used to open the clamping point with any type of screwdriver in order to unwire or wire small conductors. The compact design and front connection permit wiring in the narrowest of spaces. The double bridge shaft enables fast creation of an individual potential distribution and infeed, e.g. Using a screw terminal. A label can be snapped on to the middle of each terminal at the front. Further labels can also be mounted flat on the side of the terminals.

Specifications

GTIN: 00887621419752

UNSPSC: 39121410

Country of Origin: Germany

BABA Compliant
No
Voltage Rating
800 V
Wire Strip Length
12 mm
Mounting Type
DIN Rail
Temperature Rating
55 deg C
Wire Size
0.2 to 6 sq-mm
Color
Blue
Dimensions
66.5 mm L x 6.2 mm W x 36.5 mm H
Spacing
6.2 mm
Terminal Size
4 sq-mm
Material
Thermoplastic
Terminal Type
Plug-In
Type
3-Clamping Point Feed-Through PE Terminal Single Level
Series
8WH6
Amperage Rating
32 A
Sold as
EACH
