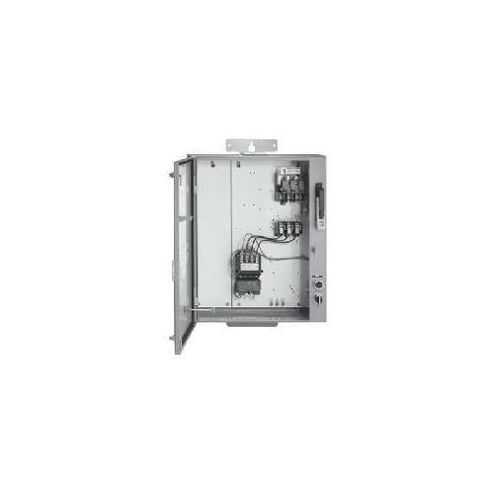

Siemens 88JUHT4MF Class 88 Auto transformer Reduced Voltage Weatherproof Pump Control Panel With 150 A Main Circuit Breaker, 120 VAC V Coil, NEMA 3/3R/12 Enclosure
Siemens 88JUHT4MF Class 88 Auto transformer Reduced Voltage Weatherproof Pump Control Panel With 150 A Main Circuit Breaker, 120 VAC V Coil, NEMA 3/3R/12 Enclosure
MPN 88JUHT4MF
ASPN SIE88JUHT4MF
UPC 662643538076
Description
Features
- Fully gasketed NEMA 3R rainproof enclosures
- 100000 A interrupting capacity with class R fuses
- Heavy duty NEMA starters
- Heavy duty disconnect handle
- Bold pilot legend on front
- Generous accessory space
- 100 hp at 460/480 VAC maximum horsepower rating
Specifications
GTIN: 00662643538076
UNSPSC: 39121521
Country of Origin: United States of America (the)
| Operating Temperature | -4 to 104 deg F |
|---|---|
| Frequency Rating | 60 Hz |
| Connection Type | Box Lug Line Side/Screw Terminal Load Side |
| Phase | 3 |
| Reset Type | Automatic/Manual/Remote |
| Overload Relay | Solid-State |
| BABA Compliant | No |
| Operating Cycles | 5000000 Cycles |
| Coil Voltage | 120 VAC |
| Motor Power | 100 hp |
| Setting | 50 to 200 A |
| Dimensions | 75 in H x 28 in W x 11 in D |
| Enclosure Type | NEMA 3/3R/12 |
| Size | SZ 4 |
| Voltage Rating | 460/480 VAC |
| Auxiliary Contact Rating | 10 A at 600 VAC A600, 5 A at 600 VDC P600 |
| Control Type | Start Pushbutton/Hand-Off-Auto Selector Switch |
| Type | Class 88 Auto transformer Reduced Voltage Weatherproof |
| Sold as | EACH |
