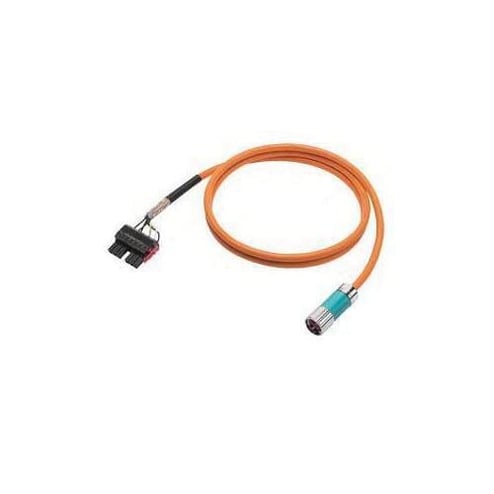

Siemens MOTION-CONNECT® 800 PLUS 6FX80025CS061CG0 Pre-Assembled Basic Power Cable, 600/1000 V, (4) 1.5 sq-mm, 26 m L

Siemens MOTION-CONNECT® 800 PLUS Basic Power Cable, Pre-Assembled, 600/1000 V, 4 Conductors, 1.5 sq-mm Conductor, 9.5 mm OD, 26 m Length, M23 Full Threaded Connector x SINAMICS S120 Booksize MoMo C/D Connector End Style, CFC Insulation, PUR Jacket, Orange Jacket, -58 to 176 deg F

The synchronous and asynchronous motors are connected to the motor modules or power modules by means of MOTION-CONNECT® power cables. The pre-assembled MOTION-CONNECT® power cable are of high quality and offer safety with problem-free functioning. Depending on the design, the MOTION-CONNECT® power cable are either pre-assembled at one end or at both ends. If pre-assembled power cable are to be installed in a cable carrier in such a way that the connector would inhibit assembly, pre-assembled cable without assembled connector can also be supplied. In this case, the contacts of the cable are crimped and the connector is supplied separately. After installing the cables, the customer assembles the connector.
